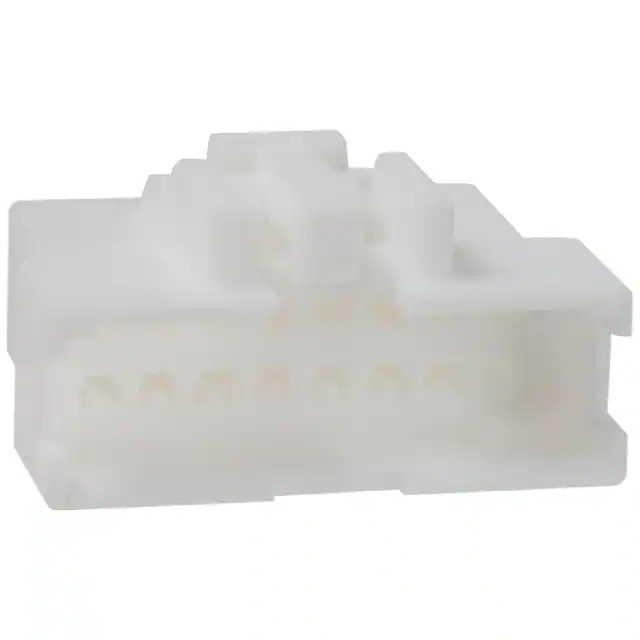

Same model may have multiple batches, images only for reference.

DF1B-16DEP-2.5RC

Name: DF1B-16DEP-2.5RC
Brand: Hirose Electric Co Ltd
SKU: 1354796
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF1B-16DEP-2.5RC
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 16POS 2.50MM / 16 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)
Datasheet	DF1B-16DEP-2.5RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	DF1B
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	16
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	0.098" (2.50mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp, IDC
Fastening Type	Latch Lock
Color	White
Features	-
Temperature Range - Operating	-35°C ~ 85°C
Note	Contacts Not Included
Base Product Number	DF1B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1354796-DF1B-16DEP-2.5RC
Ultra Librarian 3D Model	Ultra Librarian DF1B-16DEP-2.5RC CAD Model

Alternative Products

Description

The DF1B-16DEP-2.5RC is a rectangular connector housing manufactured by Hirose Electric Co Ltd.

Series: DF1B
Mounting Type: Free hanging (in-line)
Connector Type: Plug
Contact Gender: Male Pin
Number of Positions: 16
Number of Rows: 2
Contact Termination: Crimp and IDC
Color: White
Fastening Type: Latch Lock
Pitch: 0.098 inches (2.50mm)
Row Spacing: 0.098 inches (2.50mm)
Operating Temperature Range: -35°C to 85°C
Contacts Included: No
