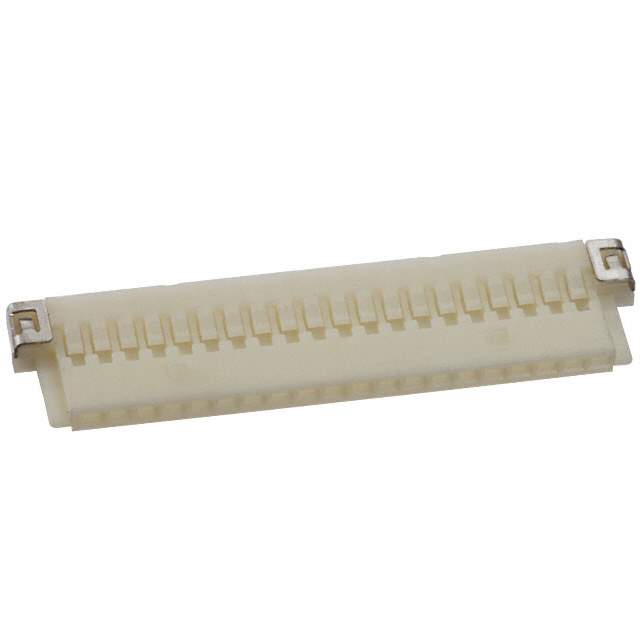

Same model may have multiple batches, images only for reference.

DF19G-20S-1C(05)

Name: DF19G-20S-1C(05)
Brand: Hirose Electric Co Ltd
SKU: 1337768
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF19G-20S-1C(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 20POS 1.00MM / 20 Rectangular Connectors - Housings Plug Beige 0.039" (1.00mm)
Datasheet	DF19G-20S-1C(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	DF19
Package	Bulk
Product Status	Obsolete
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	20
Pitch	0.039" (1.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Beige
Note	Contacts Not Included
Base Product Number	DF19G
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1337768-DF19G-20S-1C(05)
Ultra Librarian 3D Model	Ultra Librarian DF19G-20S-1C(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF19G-20S-1C(05) is a rectangular connector housing with 20 positions.

Number of Positions: 20
Pitch: 0.039" (1.00mm)
Color: Beige
Connector Type: Plug
Contact Gender: Female Socket
Contact Termination: Crimp
Contacts Included: No
Mounting Type: Free Hanging (In-Line)
