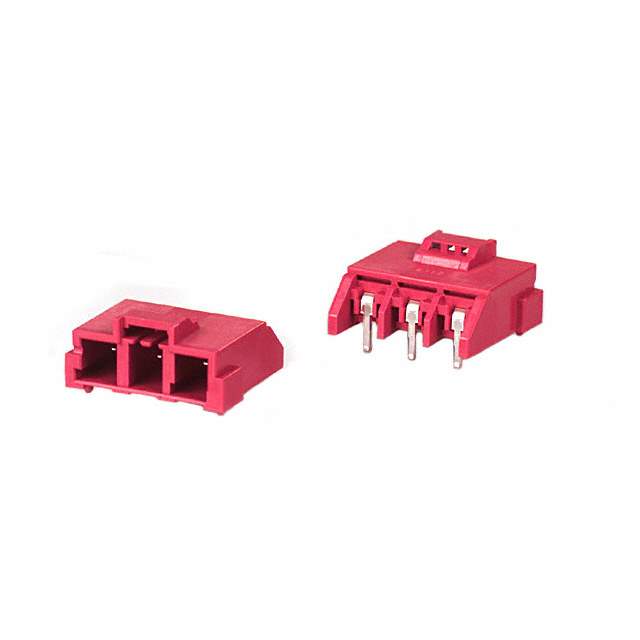

DF22L-3P-7.92DS(05)

Get a Quote

Part No	DF22L-3P-7.92DS(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 7.92MM / Connector Header Through Hole, Right Angle 3 position 0.312" (7.92mm)
Datasheet	DF22L-3P-7.92DS(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.480" (12.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Red
Current Rating (Amps)	25A
Voltage Rating	1000V
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337218-DF22L-3P-7.92DS(05)
Ultra Librarian 3D Model	Ultra Librarian DF22L-3P-7.92DS(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd EnerBee™ DF22 series connector is a male pin header connector with three positions loaded on a single row.

Connector Type: Header, Male Pin
Style: EnerBee™ DF22
Number of Positions: 3
Pitch: -
Number of Rows: 1
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Copper Alloy
Contact Finish: Tin-Copper
Voltage Rating: 1000V
Current Rating (Per Contact): 25A
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Red
Features: Board Guide
Operating Temperature: -35°C ~ 85°C
Shrouding: Shrouded - 4 Wall
Contact Shape: Square
