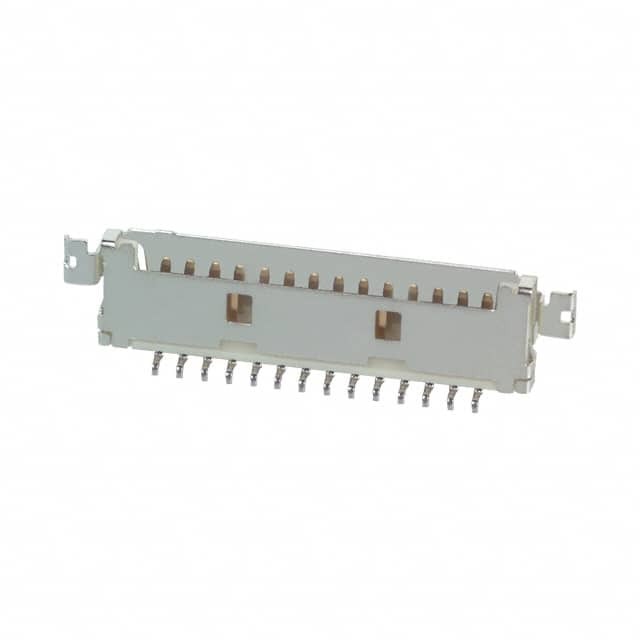

Same model may have multiple batches, images only for reference.

DF19G-14P-1H(56)

Name: DF19G-14P-1H(56)
Brand: Hirose Electric Co Ltd
SKU: 849355
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF19G-14P-1H(56)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 14POS 1MM
Datasheet	DF19G-14P-1H(56) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF19
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	14
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.065" (1.65mm)
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Glow Wire Compliant, Shielded, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	100V
Base Product Number	DF19G
Standard Package	1,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849355-DF19G-14P-1H(56)
Ultra Librarian 3D Model	Ultra Librarian DF19G-14P-1H(56) CAD Model

Alternative Products

Description

The 849355-DF19G-14P-1H(56) is a male pin header connector from Hirose Electric Co Ltd's DF19 series.

Connector Type: rectangular
Positions: 14
Features: glow wire compliance, shielding, and solder retention
Connector Gender: receptacle
Pitch: 0.039" (1.00mm)
Voltage Rating: 100V
Contact Material: phosphor bronze
Contact Finish: gold
Material: polyamide (PA) and nylon
Flammability Rating: UL94 V-0
Insulation Color: black
Shrouding: shrouded - 3 wall
Insulation Height: 0.065" (1.65mm)
Operating Temperature Range: -35°C to 85°C
Packaging: tape & reel
Standard Package: 1,000 pcs
Applications: board to cable/wire
