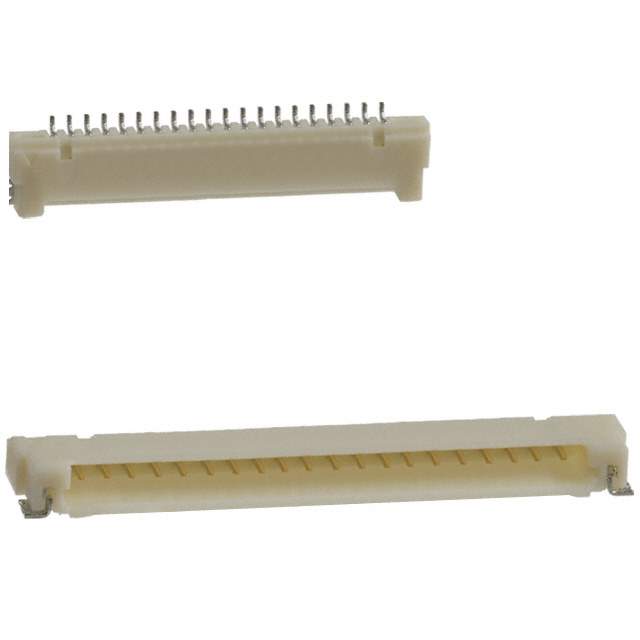

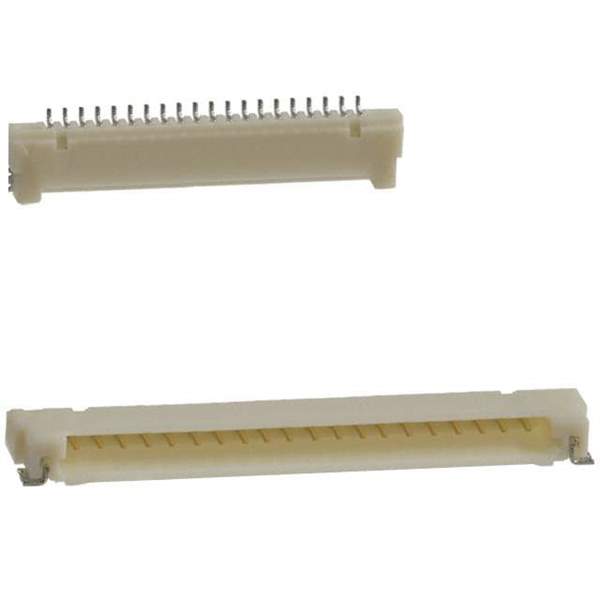

DF14A-20P-1.25H(56) Real Image
Same model may have multiple batches, images only for reference.

DF14A-20P-1.25H(56)

Part No DF14A-20P-1.25H(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Manufacturer Hirose Electric Co Ltd
Series DF14
Package Reel - TR
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF14A-20P-1.25H(56)-ND, 538-0119-7-56, H125746DKR, H125746TR, H125746CT
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868437-DF14A-20P-1.25H(56)
Ultra Librarian 3D Model Ultra Librarian DF14A-20P-1.25H(56) CAD Model

Description

The Hirose Electric Co Ltd DF14A-20P-1.25H(56) is a connector header that is surface mounted and has a right angle of 20 positions.

  • Series: DF14
  • Win Source Part Number: 868437
  • Operating Temperature Range: -35°C to 85°C
  • Package: Reel - TR
  • Supply and Demand Status: Limited
  • Package Quantity: 1000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: DF14A-20P-1.25H(56)-ND, 538-0119-7-56, H125746DKR, H125746TR, and H125746CT
