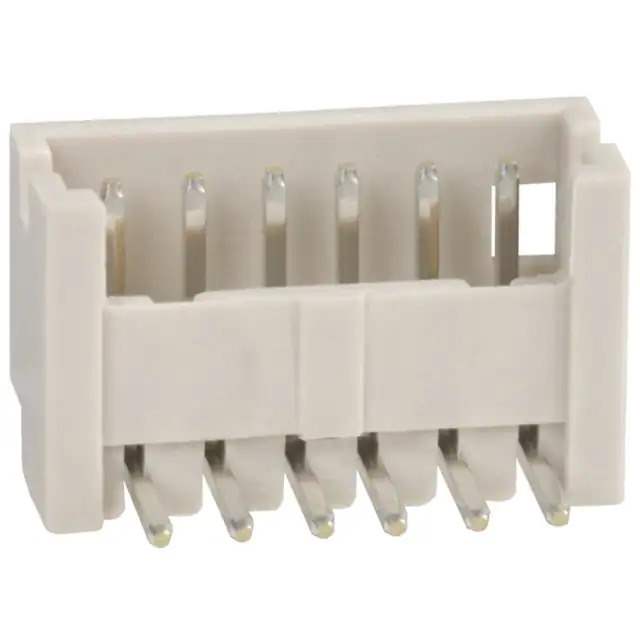

Same model may have multiple batches, images only for reference.

DF13-6P-1.25DS(20)

Name: DF13-6P-1.25DS(20)
Brand: Hirose Electric Co Ltd
SKU: 849887
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF13-6P-1.25DS(20)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 1.25MM / Connector Header Through Hole, Right Angle 6 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.091" (2.30mm)
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Base Product Number	DF13
Standard Package	52 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849887-DF13-6P-1.25DS(20)
Ultra Librarian 3D Model	Ultra Librarian DF13-6P-1.25DS(20) CAD Model

Alternative Products

Description

The DF13 series header connector is a reliable and versatile electronic component designed for use in various electronic devices. Bolded product name: DF13 series. Manufacturer is not explicitly mentioned in the description.

Positions: 6
Fastening Type: Detent Lock
Connector Type: Male Pin
Termination Type: Solder
Contact Material: Brass
Voltage Rating: 150V
Current Rating: 1A
Operating Temperature: -35°C to 85°C
Product Status: Obsolete
