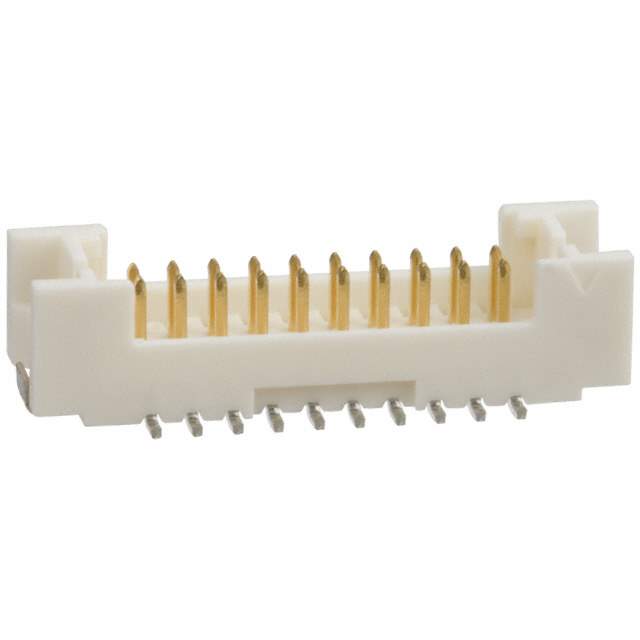

DF13-20DP-1.25V(55) Real Image
Same model may have multiple batches, images only for reference.

DF13-20DP-1.25V(55)

Part No DF13-20DP-1.25V(55)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number DF13
Other Names H10160,*DF13-20DP-1.25V(55),DF1320DP125V55,Q5995518E
Standard Package 26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293325-DF13-20DP-1.25V(55)
Ultra Librarian 3D Model Ultra Librarian DF13-20DP-1.25V(55) CAD Model

Description

This connector is a header type male pin connector that is part of the DF13 series.

  • Positions Loaded: 20
  • Rows: Two
  • Pitch: 0.049 inches
  • Design: Board-to-cable/wire connections
  • Wall Type: Shrouded, 4-wall
  • Contact Finish (Mating): Gold with a thickness of 8.00 microns
  • Contact Finish (Post): Tin-copper with a thickness of 39.4 microns
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Temperature Range: -35°C to 85°C
  • Insulation Material: Polyamide (PA) and nylon
  • Mounting: Surface Mount Technology (SMT)
  • Fastening Type: Detent Lock
  • Package: Tube
  • Material Flammability Rating: UL94 V-0
