Same model may have multiple batches, images only for reference.

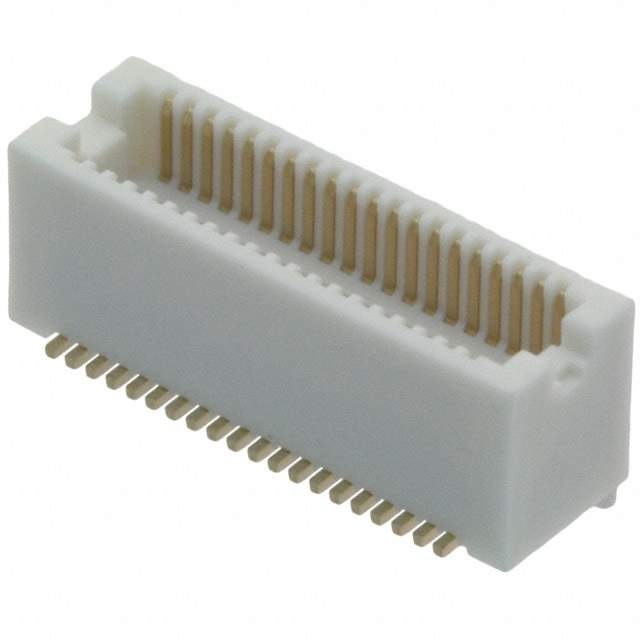

DF12D(5.0)-40DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12D(5.0)-40DP-0.5V(81)

Part No DF12D(5.0)-40DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 40POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF12
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 537-0482-0-81, H11746CT, H11746DKR, 537-0482-0 81, DF12D5040DP05V81, H11746TR, *DF12D(5.0)-40DP-0.5V(81)
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868409-DF12D(5.0)-40DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12D(5.0)-40DP-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd DF12D Connector Header is a 40 position connector header with outer shroud contacts surface mount gold.

  • Package: Reel-TR
  • Quantity per Package: 1000 pieces
  • Series: DF12
  • Supply and Demand Status: Limited
  • HTSUS: 8536.69.4040
  • Status: Obsolete
