Same model may have multiple batches, images only for reference.

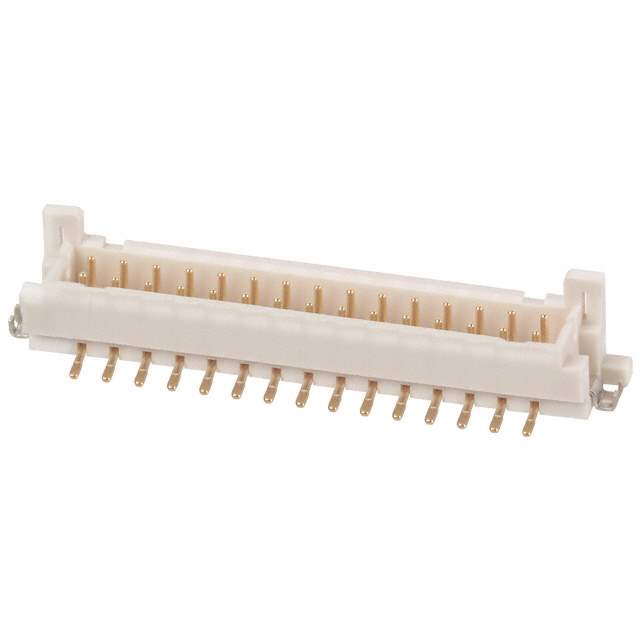

DF11G-30DP-2V(50) Real Image
Same model may have multiple batches, images only for reference.

DF11G-30DP-2V(50)

Part No DF11G-30DP-2V(50)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 30POS 2MM / Connector Header Surface Mount 30 position 0.079" (2.00mm)
Datasheet
DF11G-30DP-2V(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.283" (7.19mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 8.2mm, 8.45mm, 9.55mm
Base Product Number DF11G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H2910,*DF11G-30DP-2V(50),543-0823-1-50,DF11G30DP2V50
Standard Package 12
Win Source Part Number 1212709-DF11G-30DP-2V(50)
Ultra Librarian 3D Model Ultra Librarian DF11G-30DP-2V(50) CAD Model

Description

Hirose Electric Co Ltd 1212709-DF11G-30DP-2V(50) is a 30 position male pin header connector from Hirose Electric Co Ltd that falls under the category of rectangular connectors.

  • Package: Tube
  • Standard Package: 12
  • Pitch: 0.079 inches (2.00mm)
  • Connection Style: Board to Board or Cable
  • Features: Board Guide, Solder Retention, Detent Lock
  • Fastening Type: Detent Lock
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA) and Nylon
  • Material Flammability Rating: UL94 V-0
  • MSL Level: 1
