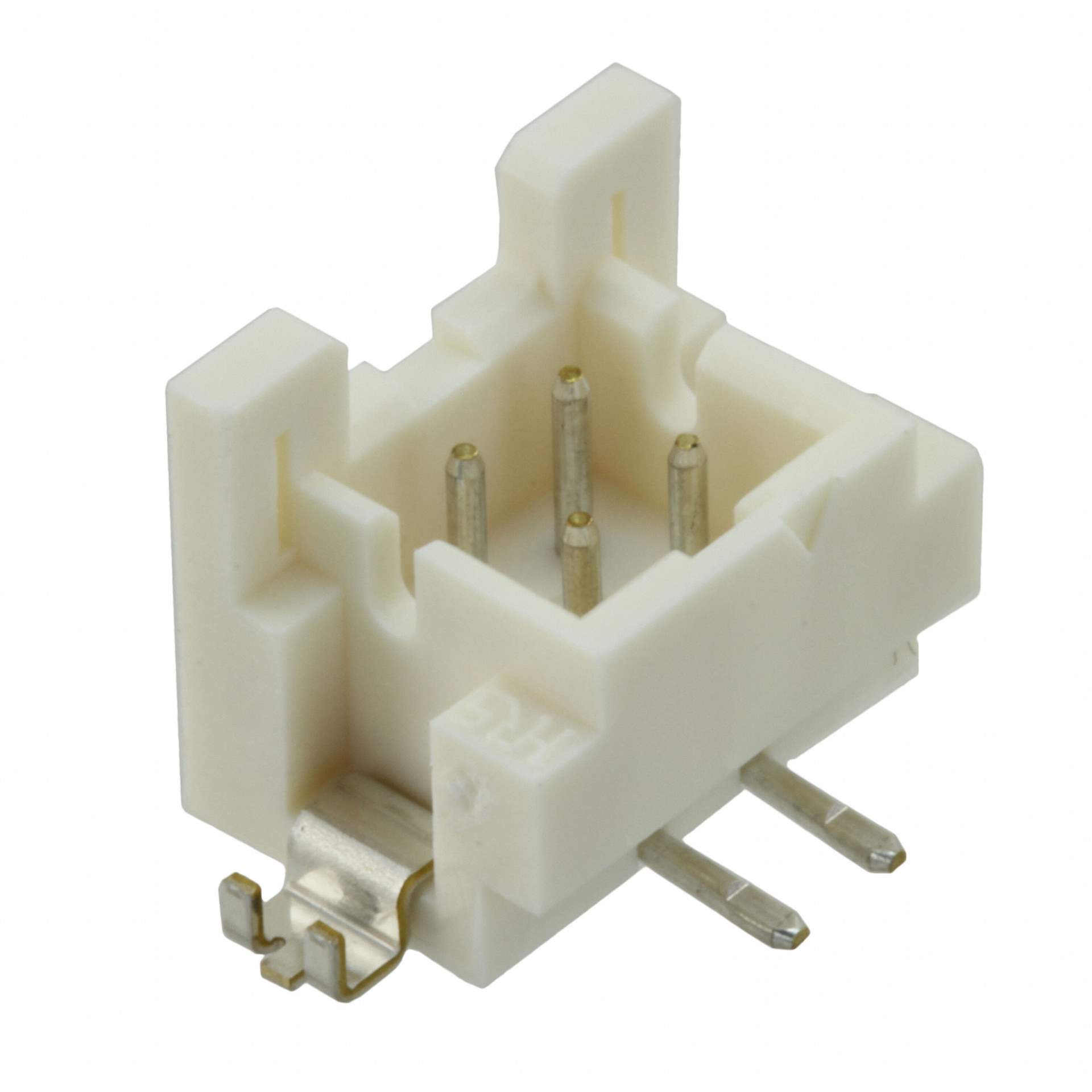

Same model may have multiple batches, images only for reference.

DF11CZ-4DP-2V(27)

Name: DF11CZ-4DP-2V(27)
Brand: Hirose Electric Co Ltd
SKU: 810349
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11CZ-4DP-2V(27)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.283" (7.19mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4μin (1.00μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	2A
Voltage Rating	250V
Mated Stacking Heights	8.2mm, 8.45mm, 9.55mm
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810352-DF11CZ-4DP-2V(27)
Ultra Librarian 3D Model	Ultra Librarian DF11CZ-4DP-2V(27) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 810352-DF11CZ-4DP-2V(27) is a 4-position male pin header connector with a detent lock fastening type.

Positions: 4
Fastening Type: Detent Lock
Pitch: 0.079 inches (2.00mm)
Voltage Rating: 250V
Current Rating: 2A
Contact Material: Brass
Contact Finish: Tin
Flammability Rating: UL94 V-0
Operating Temperature Range: -30°C to 85°C
Packaging: Reel
Supply and Demand Status: Limited
