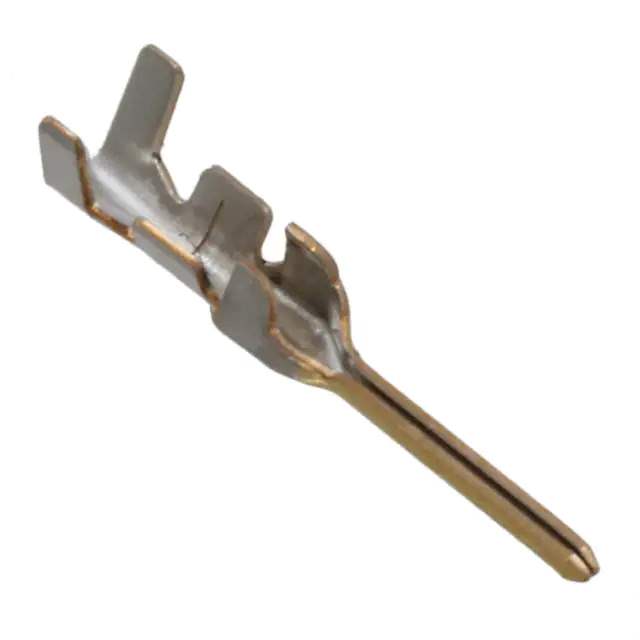

Same model may have multiple batches, images only for reference.

DF11-EP2428PCFA

Name: DF11-EP2428PCFA
Brand: Hirose Electric Co Ltd
SKU: 584400
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-EP2428PCFA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN PIN 24-28AWG CRIMP GOLD / Pin Contact Gold 24-28 AWG Crimp
Datasheet	DF11-EP2428PCFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Pin or Socket	Pin
Contact Termination	Crimp
Wire Gauge	24-28 AWG
Contact Finish	Gold
Base Product Number	DF11
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	584400-DF11-EP2428PCFA
Ultra Librarian 3D Model	Ultra Librarian DF11-EP2428PCFA CAD Model

Alternative Products

Description

The DF11 series is a range of rectangular connector contacts designed for use in electronic applications.

Part Number: 584400-DF11-EP2428PCFA
Contact Type: Pin
Finish: Gold
Wire Gauge: 24 to 28 AWG
Termination: Crimping
Package Quantity: 10,000 pieces
Status: Active
Manufacturer: Hirose Electric Co Ltd
