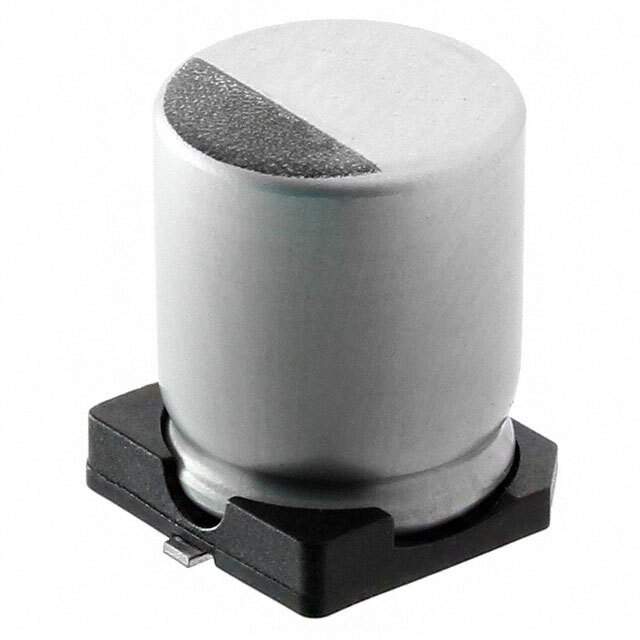

EMZR250ADA221MF80G Real Image
Same model may have multiple batches, images only for reference.

EMZR250ADA221MF80G

Part No EMZR250ADA221MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V SMD / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160mOhm @ 100kHz 2000 Hrs @ 105°C
Datasheet
EMZR250ADA221MF80G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Reel - TR
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 160mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-4320-6,565-4320-1,565-4320-2
Standard Package 900
Win Source Part Number 1328506-EMZR250ADA221MF80G
Ultra Librarian 3D Model Ultra Librarian EMZR250ADA221MF80G CAD Model

Description

The EMZR250ADA221MF80G capacitor is a surface mount aluminum electrolytic capacitor from United Chemi-Con with a capacitance of 220 µF and a voltage rating of 25 V.

  • Capacitance: 220 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • ESR: 160mOhm @ 100kHz
  • Series: KXG
  • Standard Package: 900
  • Lifetime: 2000 Hrs @ 105°C
  • Application: automotive applications
  • Package/Case: radial, can - SMD
  • Dimension: 0.248" Dia (6.30mm)
  • Operating Temperature: -55°C ~ 105°C
