Same model may have multiple batches, images only for reference.

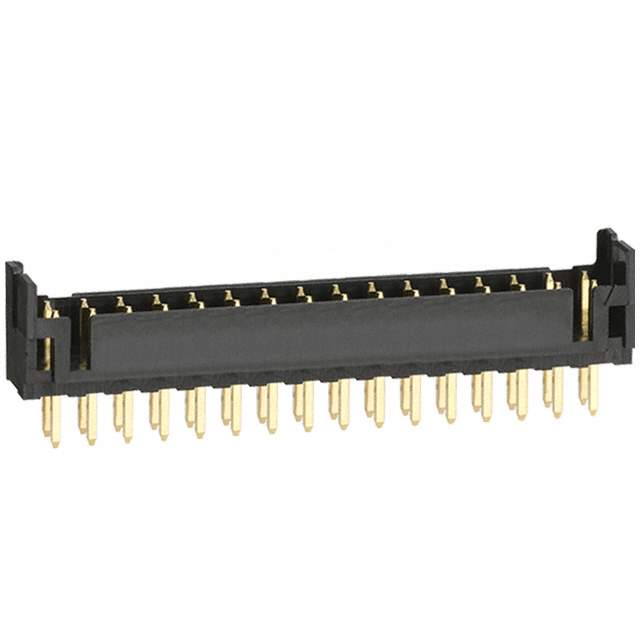

DF11-32DP-2DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF11-32DP-2DSA(01)

Part No DF11-32DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
DF11-32DP-2DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 32
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Base Product Number DF11
Other Names *DF11-32DP-2DSA(01),H2864,Q887847,DF1132DP2DSA01,DF11-32DP2DSA (01),DF11-32DP-2DSA (01),543-0531-6-01,DF11-32DP2DSA(01),DF11-32DP2DSA(01),DF11-32DP-2DSA-(01)
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293332-DF11-32DP-2DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF11-32DP-2DSA(01) CAD Model

Description

The DF11-32DP-2DSA(01) is a male pin header connector designed for use in electronic equipment.

  • Series: DF11
  • Shape: Rectangular
  • Positions: 32
  • Voltage Rating: 250V
  • Mounting: Through Hole
  • Package: Bulk
  • Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Gold
  • Operating Temperature Range: -30°C to 85°C
