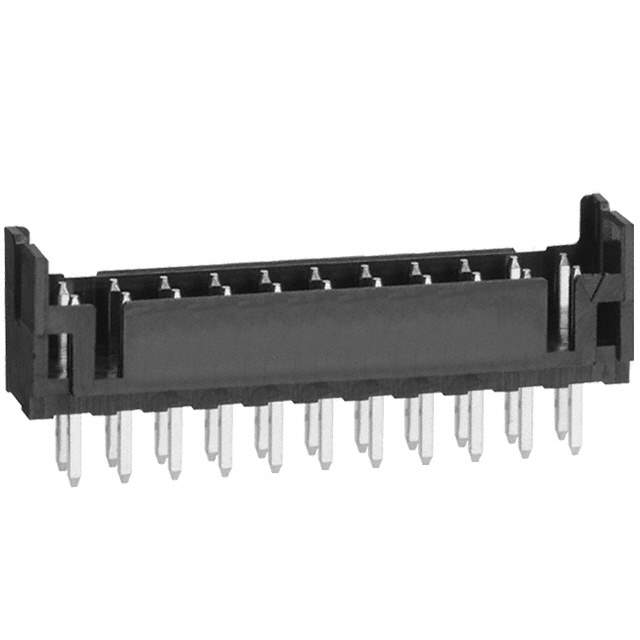

DF11-22DP-2DSA(08) Real Image
Same model may have multiple batches, images only for reference.

DF11-22DP-2DSA(08)

Part No DF11-22DP-2DSA(08)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 22POS 2MM / Connector Header Through Hole 22 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Base Product Number DF11
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 543-0526-6-08,DF11-22DP-2DSA(08)-ND,H125950
Standard Package 100
Win Source Part Number 1332692-DF11-22DP-2DSA(08)
Ultra Librarian 3D Model Ultra Librarian DF11-22DP-2DSA(08) CAD Model

Description

The Hirose Electric Co Ltd DF11-22DP-2DSA(08) is a 2-row, 22-position male pin header connector with a pitch of 2.00mm.

  • Number of Rows: 2
  • Positions: 22
  • Pitch - Mating: 2.00mm
  • Fastening Type: Detent Lock
  • Shrouding: Shrouded, 4 Walls
  • Contact Shape: Square
  • Contact Material: Brass
  • Contact Finish - Mating: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Material Flammability Rating: UL94 V-0
  • Voltage Rating: 250V
  • Current Rating Per Contact: 2A
  • Operating Temperature Range: -30°C to 85°C
  • Connector Type: Board-to-Board or Cable
  • Mounting Type: Through Hole
  • Overall Contact Length: 7.60mm
  • Insulation Height: 6.60mm
  • RoHS Compliant: Yes
