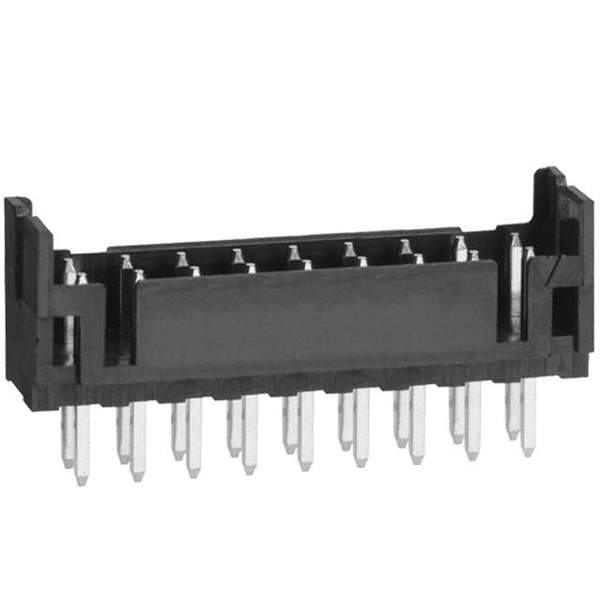

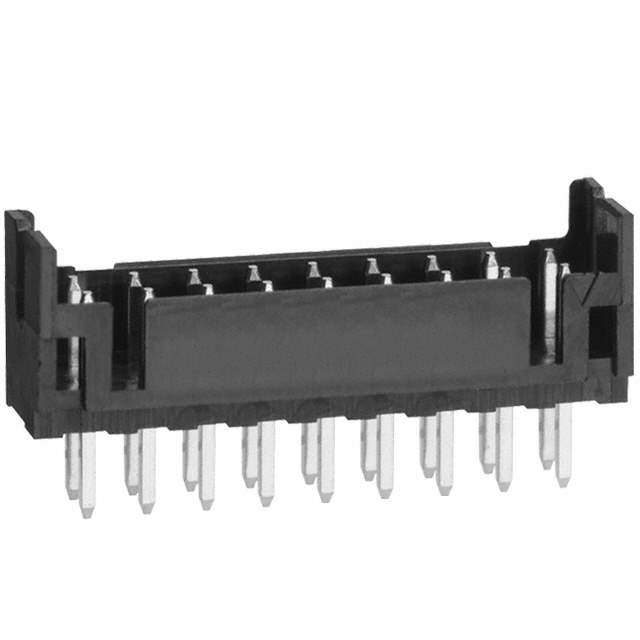

Same model may have multiple batches, images only for reference.

DF11-18DP-2DSA(08)

Name: DF11-18DP-2DSA(08)
Brand: Hirose Electric Co Ltd
SKU: 1336764
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-18DP-2DSA(08)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 18POS 2MM / Connector Header Through Hole 18 position 0.079" (2.00mm)
Datasheet	DF11-18DP-2DSA(08) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.299" (7.60mm)
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	250V
Mated Stacking Heights	7.55, 7.8mm, 8.9mm
Base Product Number	DF11
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1336764-DF11-18DP-2DSA(08)
Ultra Librarian 3D Model	Ultra Librarian DF11-18DP-2DSA(08) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF11 series male pin headers are rectangular connectors used in board to board or cable applications. Hirose Electric Co Ltd

Material: Brass
Fastening Type: Detent Lock
Pitch: 0.079" (2.00mm)
Positions Loaded: 18
Rows: 2
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 250V
Current Rating: 2A
Shrouded: Yes, 4 Walls
Mounting Type: Through Hole
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Operating Temperature: -30°C ~ 85°C
Packaging: Bulk
Standard Package: 100
