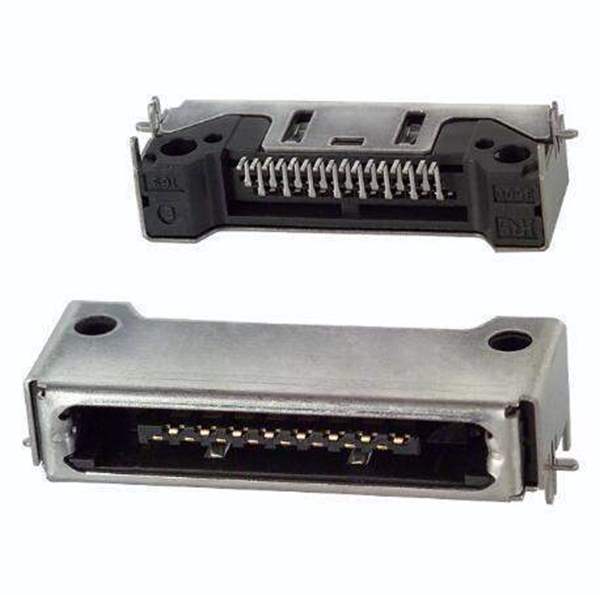

3560-16S(50) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

3560-16S(50)

Part No 3560-16S(50)
Manufacturer Hirose Electric Co Ltd
Catalog Pluggable Connectors
Description CONN MULTI-PURP RCPT 16P R/A SMD
Datasheet
3560-16S(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Pluggable Connectors Pluggable Connector Assemblies
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type Multi-Purpose
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Win Source Part Number WS1208139-3560-16S(50)
Ultra Librarian 3D Model Ultra Librarian 3560-16S(50) CAD Model

Description

These miniature, shielded interface connectors were designed for use with portable terminal equipment. They are suited to a wide range of applications including hand-held terminals and PDA equipment because of excellent insertion/removal durability (20,000 times).
