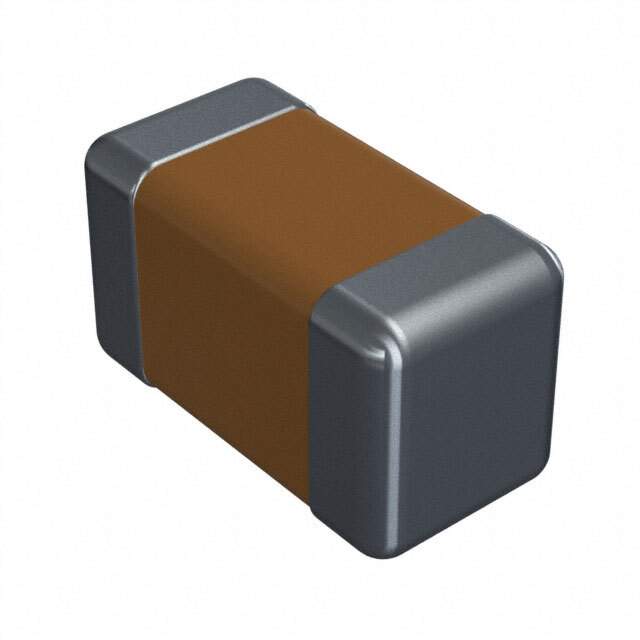

06032U1R5BAT2A Real Image
Same model may have multiple batches, images only for reference.

06032U1R5BAT2A

Part No 06032U1R5BAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 1.5PF 200V NP0 0603 / 1.5 pF ±0.1pF 200V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Datasheet
06032U1R5BAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series U
Package Tape & Reel
Capacitance 1.5 pF
Tolerance ±0.1pF
Voltage - Rated 200V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Thickness (Max) 0.036" (0.91mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-10262-2,06032U1R5BAT2A-ND,478-10262-1,478-10262-6
Standard Package 4,000
Win Source Part Number 1033761-06032U1R5BAT2A
Ultra Librarian 3D Model Ultra Librarian 06032U1R5BAT2A CAD Model

Description

The Kyocera AVX 1033761-06032U1R5BAT2A is a ceramic capacitor with ultra-low ESR that is ideal for high-frequency applications such as RF and microwave.

  • Capacitance: 1.5 pF
  • Tolerance: ±0.1pF
  • Voltage Rating: 200V
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.036" (0.91mm)
  • Package/Case: 0603 (1608 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • Mounting: Surface Mountable
  • Packaging: Tape and Reel
  • Alternative Parts: CBR06C159A1GAC, CBR06C159BAGAC, C0603C159C5GACTU, GRM1885C1H1R5CA01D, 06035A1R5CAT2A, 06031A1R5CAT2A, CC0603CRNPO9BN1R5
