Same model may have multiple batches, images only for reference.

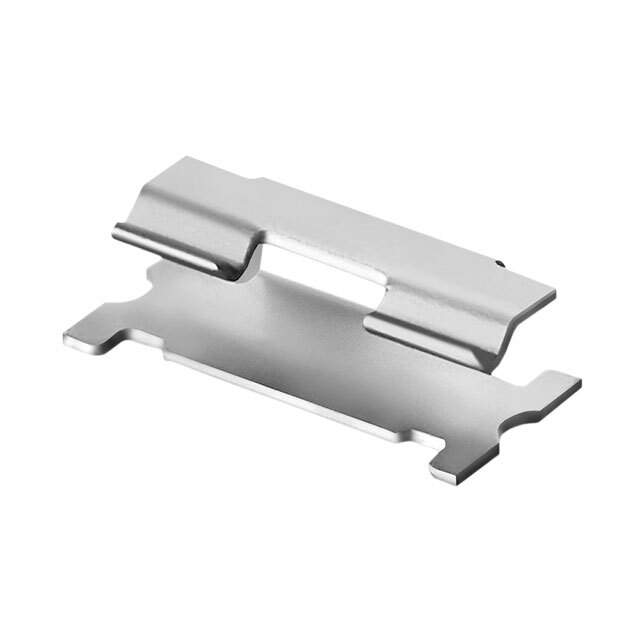

S8081-46R Real Image
Same model may have multiple batches, images only for reference.

S8081-46R

Part No S8081-46R
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PIN RCPT .028 SOLDER / Connector Jumper Link Stainless Steel Tin T/R
Datasheet
S8081-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Harwin Inc.
Series EZ-Board
Packaging Reel package
Tail Type No Tail
Termination Solder
Length - Overall 0.110" (2.79mm)
Accepts Pin Diameter 0.028" (0.70mm)
Contact Material Stainless Steel
Contact Finish Tin
Operating Temperature Range -40°C ~ 85°C
Insertion Force 12.00N
Win Source Part Number 793704-S8081-46R
Popularity Medium
Supply and Demand Status Balance
Family Name S8081-46R
Introduction Date September 14, 2015
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian S8081-46R CAD Model

Description

The EZ-Board series S8081-46R is a stainless steel contact connector made by Harwin Inc.

  • Type: No-tail socket
  • Length: 0.110” (2.79mm)
  • Pin Diameter: 0.028” (0.70mm)
  • Operating Temperature: -40°C to 85°C
  • Packaging: Reel
  • Insertion Force: 12.00N
  • Supply and Demand Status: Balanced
