Same model may have multiple batches, images only for reference.

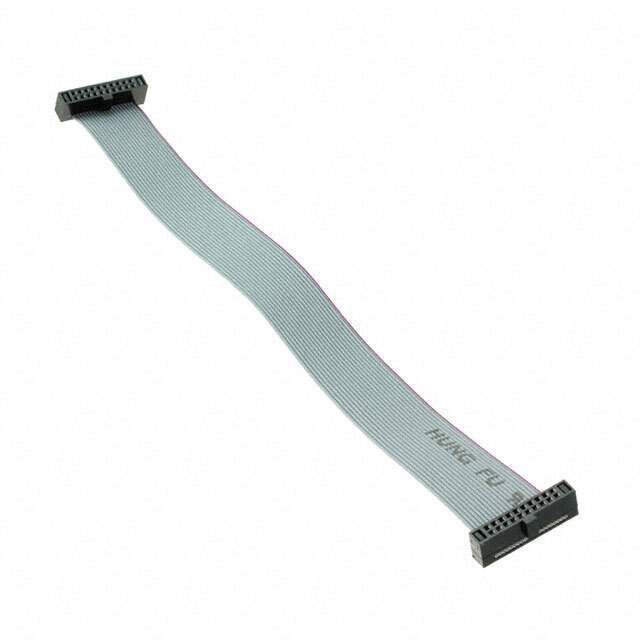

M50-9101042 Harwin Inc.
Same model may have multiple batches, images only for reference.

M50-9101042

Part No M50-9101042
Manufacturer Harwin Inc.
Catalog Rectangular Cable Assemblies
Description CBL ASSY 1.27MM 20POS F-F 150MM
Datasheet
M50-9101042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208017-M50-9101042
Manufacturer Harwin Inc.
Category Cable Assemblies -Rectangular Cable Assemblies
Series Archer M50
Package Bulk
Product Status Active
Connector Type Socket to Socket
Pitch - Connector 0.050" (1.27mm)
Pitch - Cable 0.025" (0.64mm)
Length 0.492' (150.00mm, 5.91")
Color Gray, Ribbon
Ultra Librarian 3D Model Ultra Librarian M50-9101042 CAD Model

Description

Archer connectors are based on a miniaturized half-pitch version of the M20 2.54mm pitch series. At 1.27mm (.05”) pitch, these connectors give up to 38% space saving on 2mm pitch, and 50% on the 2.54mm pitch. This space saving allows more room for added functionality or smaller PCBs and enclosures. Throughboard and Gull-wing SMT terminations, vertical and horizontal orientations. Contact counts from 2 to 100 are available.
