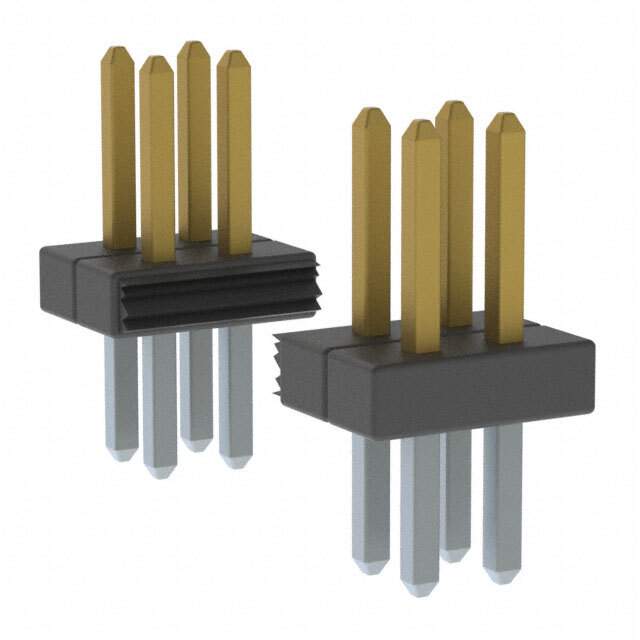

M50-3501042 Real Image
Same model may have multiple batches, images only for reference.

M50-3501042

Part No M50-3501042
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 1.27MM
Datasheet
M50-3501042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features Connector Header Through Hole 20 position 0.050" (1.27mm)
Manufacturer Harwin Inc.
Series Archer M50
Package Bulk
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Family Name M50-350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-1386, M503501042
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924903-M50-3501042
Ultra Librarian 3D Model Ultra Librarian M50-3501042 CAD Model

Description

The Archer M50-3501042 is a 20-position, 0.050" (1.27mm) connector header manufactured by Harwin Inc.

  • Series: Archer M50 series
  • Mounting Style: through-hole mounting style
  • Compliance: RoHS compliant
  • ECCN: EAR99
  • Popularity: high popularity
  • Status: balanced supply and demand status
  • Package: bulk package of 500 units
  • Lead Time: estimated production lead time of 11 weeks
  • REACH: REACH unaffected
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 952-1386 and M503501042
