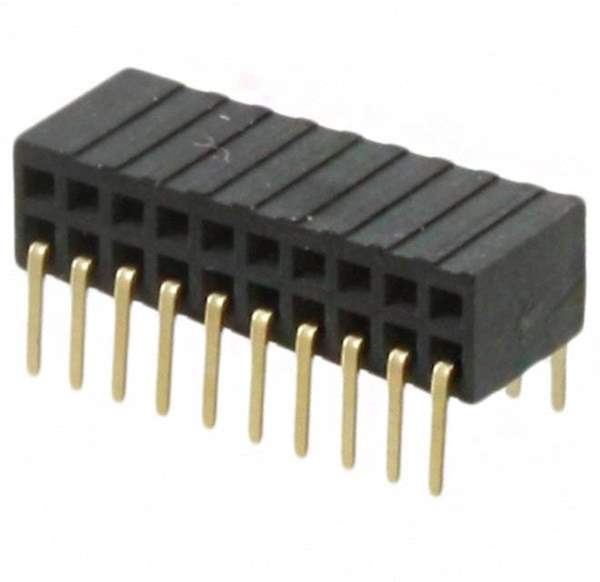

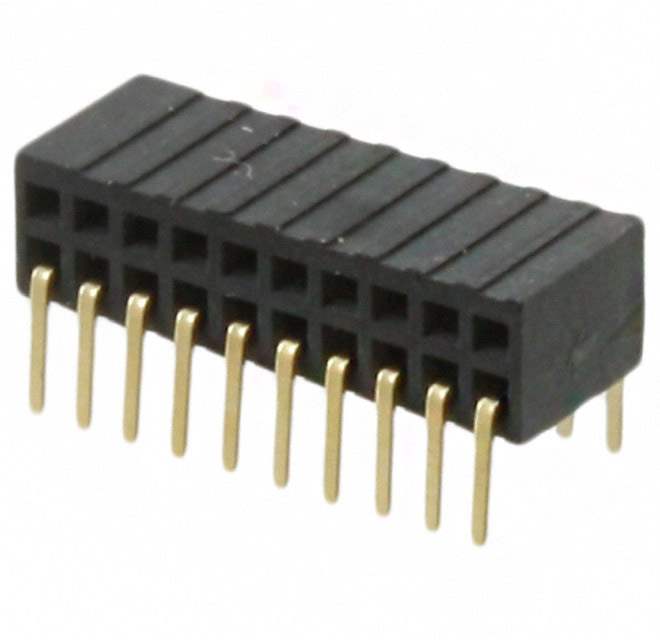

M50-3201045 Harwin Inc.
Same model may have multiple batches, images only for reference.

M50-3201045

Part No M50-3201045
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20P 0.05 GOLD PCB R/A
Datasheet
M50-3201045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208020-M50-3201045
Manufacturer Harwin Inc.
Category Connectors, Interconnects- Rectangular Connectors- Headers, Receptacles, Female Sockets
Series Archer M50
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Pitch - Mating 0.050" (1.27mm)
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian M50-3201045 CAD Model

Description

Archer connectors are based on a miniaturized half-pitch version of the M20 2.54mm pitch series. At 1.27mm (.05”) pitch, these connectors give up to 38% space saving on 2mm pitch, and 50% on the 2.54mm pitch. This space saving allows more room for added functionality or smaller PCBs and enclosures. Throughboard and Gull-wing SMT terminations, vertical and horizontal orientations. Contact counts from 2 to 100 are available
