M20-6112045 Harwin Inc.
Same model may have multiple batches, images only for reference.

M20-6112045

Part No M20-6112045
Manufacturer Harwin Inc.
Catalog Backplane Connectors

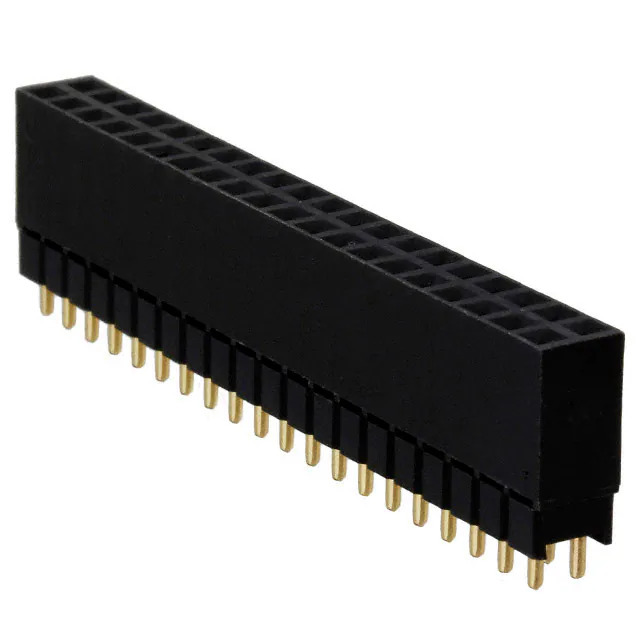

Description CONN NON-STKTHRU PC/104 40P PCB / 40 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
Datasheet
M20-6112045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Harwin Inc.
Series M20
Package Tube
Product Status Active
Connector Usage -
Connector Type Non-Stackthrough, Unkeyed (PC/104)
Connector Style PC/104
Number of Positions 40
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Number of Columns -
Mounting Type Through Hole
Termination Solder
Contact Layout, Typical -
Features -
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Current Rating (Amps) 3A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating -
Base Product Number M20-611
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355862-M20-6112045
Ultra Librarian 3D Model Ultra Librarian M20-6112045 CAD Model

Description

The M20-6112045 is a specialized backplane connector from Harwin Inc..

  • Type: Non-stackthrough, unkeyed (PC/104)
  • Positions: 40
  • Rows: 2
  • Mounting Type: Through-hole
  • Current Rating: 3A
  • Contact Finish: Gold, 3.00μin (0.076μm)
  • Color: Black
  • Voltage Rating: -
  • Flammability Rating: UL94 V-0
  • Pitch: 0.100" (2.54mm)
  • Connector Style: PC/104
  • Loading: All 40 positions
  • Termination: Solder
