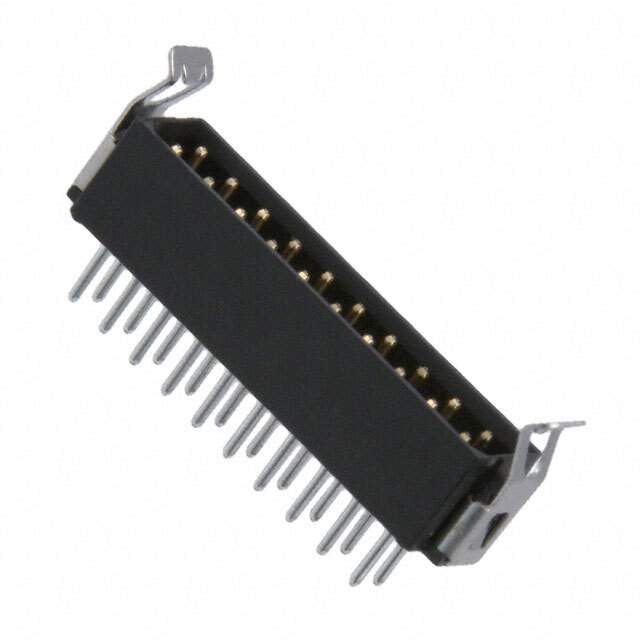

Same model may have multiple batches, images only for reference.

M80-8672022

Name: M80-8672022
Brand: Harwin Inc.
SKU: 1332380
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-8672022
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2MM / Connector Header Through Hole 20 position 0.079" (2.00mm)
Datasheet	M80-8672022 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin-Lead
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-867
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	,M808672022,952-2413-5,M80-8672022-ND
Standard Package	10
Win Source Part Number	1332380-M80-8672022
Ultra Librarian 3D Model	Ultra Librarian M80-8672022 CAD Model

Description

The Harwin Inc. M80-8672022 is a male pin header connector designed for board-to-board or cable connections.

Positions: 20
Rows: 2
Positions Loaded: All
Design: Shrouded with 4 walls
Fastening Type: Latch lock
Contact Material: Phosphor bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Tin-lead
Voltage Rating: 800V
Current Rating: 2.2A
Pitch Mating: 0.079" (2.00mm)
Contact Finish Thickness (Mating): 29.5μin (0.75μm)
Contact Finish Thickness (Post): 118.1μin (3.00μm)
Insulation Material: Polyester, glass-filled
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 125°C
