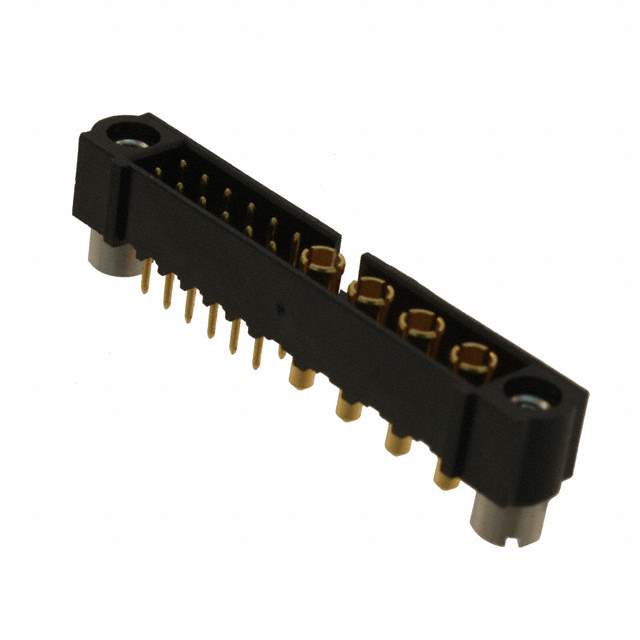

M80-5T11205M2-04-331-00-000

Name: M80-5T11205M2-04-331-00-000
Brand: Harwin Inc.
SKU: 1349931
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-5T11205M2-04-331-00-000
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2MM / Connector Header Through Hole 16 (12 + 4 Power) position 0.079" (2.00mm)
Datasheet	M80-5T11205M2-04-331-00-000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate Mix-Tek
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16 (12 + 4 Power)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Mated Stacking Heights	7.3mm, 9.75mm
Base Product Number	M80-5T1
Standard Package	7
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349931-M80-5T11205M2-04-331-00-000
Ultra Librarian 3D Model	Ultra Librarian M80-5T11205M2-04-331-00-000 CAD Model

Alternative Products

Description

The Datamate Mix-Tek series connector from Harwin Inc. is a high-quality male pin header that comes with 16 (12 + 4 Power) positions.

Positions: 16 (12 + 4 Power)
Win Source Part Number: 1349931-M80-5T11205M2-04-331-00-000
Supply and Demand: Balance
Package: Tray
Temperature Range: -55°C ~ 125°C
REACH: Unaffected
ECCN: EAR99
HTSUS: 8536.69.4040
