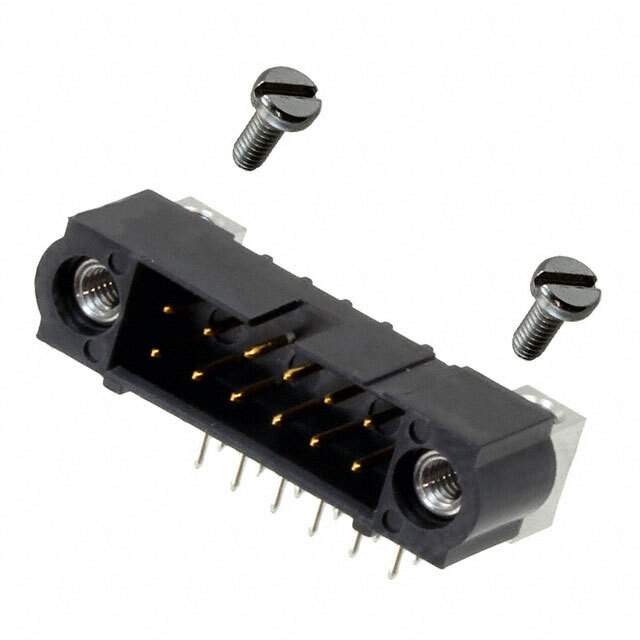

M80-5411242

Name: M80-5411242
Brand: Harwin Inc.
SKU: 1340372
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-5411242
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 12POS 2MM / Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
Datasheet	M80-5411242 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.177" (4.50mm)
Insulation Height	0.218" (5.55mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-541
Standard Package	12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340372-M80-5411242
Ultra Librarian 3D Model	Ultra Librarian M80-5411242 CAD Model

Description

The Datamate J-Tek series male header connector is a 12-position rectangular connector designed for board-to-board or cable applications.

Features: Keying Slot, Mounting Flange, Mating Flange, Mounting Hardware
Voltage Rating: 800V
Insulation Material: Polyphenylene Sulfide (PPS) and Glass-Filled
Contact Material: Phosphor Bronze
Contact Plating (Mating): Gold
Contact Plating (Post): Tin
Fastening Type: Threaded
Shrouded: Yes, 4 Walls
Contact Shape: Circular
Contact Length: 4.50mm
Operating Temperature: -55°C to 125°C
Current Rating: 2.2Amps
Manufacturer: Harwin Inc.
Package: Tube
