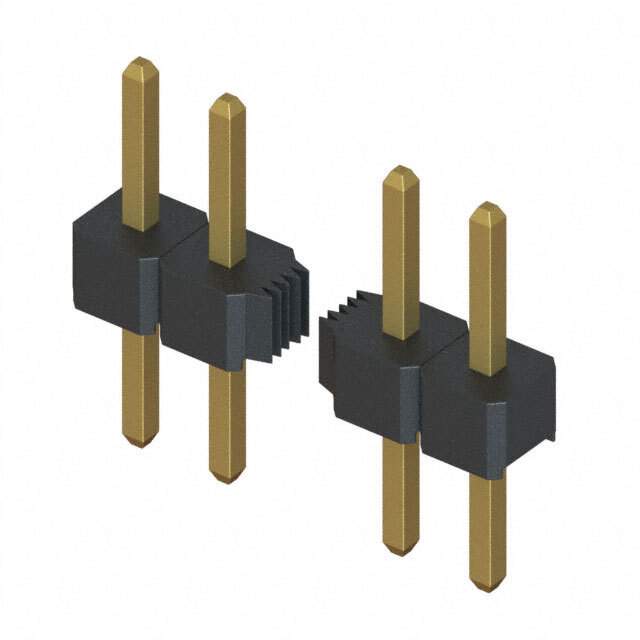

M22-2010805

Name: M22-2010805
Brand: Harwin Inc.
SKU: 1332478
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M22-2010805
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2MM / Connector Header Through Hole 8 position 0.079" (2.00mm)
Datasheet	M22-2010805 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.331" (8.40mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Mated Stacking Heights	5.9mm, 8.6mm
Base Product Number	M22-201
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-2278,M222010805,M22F2010805
Standard Package	1,000
Win Source Part Number	1332478-M22-2010805
Ultra Librarian 3D Model	Ultra Librarian M22-2010805 CAD Model

Description

The M22-2010805 electronic component from Harwin Inc. is a male pin header connector with a single row of 8 positions.

Contact Type: Male Pin
Number of Rows: Single
Positions: 8
Packaging: Bulk
Applications: Board-to-Board
Current Rating: 1A per contact
Temperature Range: -55°C to 105°C
