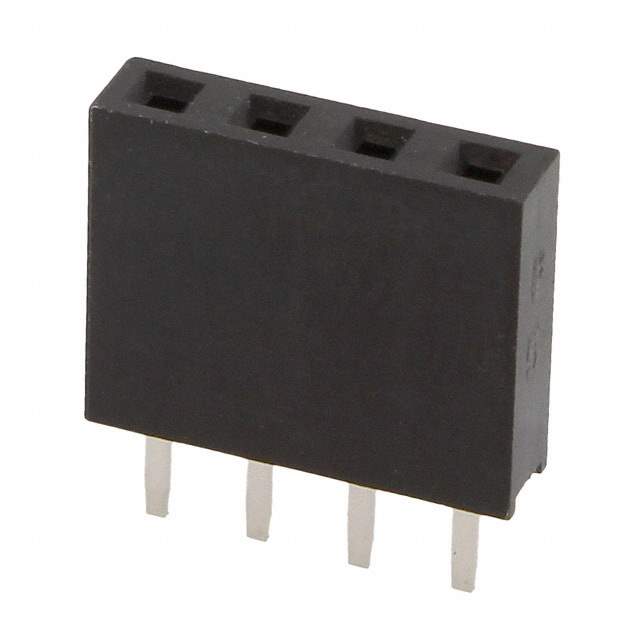

M20-7820446

Name: M20-7820446
Brand: Harwin Inc.
SKU: 1332743
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M20-7820446
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 TIN PCB / 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	M20-7820446 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	11.04mm, 12.63mm
Current Rating (Amps)	3A
Voltage Rating	1000V
Applications	General Purpose, Industrial, Telecommunications
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M20-782
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-1792,M207820446
Standard Package	54
Win Source Part Number	1332743-M20-7820446
Ultra Librarian 3D Model	Ultra Librarian M20-7820446 CAD Model

Description

The Harwin Inc. 1332743-M20-7820446 is a 4-position receptacle connector.

Number of Positions: 4
Connector Type: Receptacle
Fastening Type: Push-Pull
Mounting Type: Through-Hole
Insulation Material: Polyamide (PA6T), Nylon 6T
Applications: Industrial, General-Purpose, Telecommunications
Mated Stacking Heights: 11.04mm, 12.63mm
Contact Material: Phosphor Bronze
Voltage Rating: 1000V
RoHS3 Compliant: Yes
Current Rating: 3A
Contact Finish: Tin
Contact Shape: Square
Operating Temperature: -40°C to 105°C
