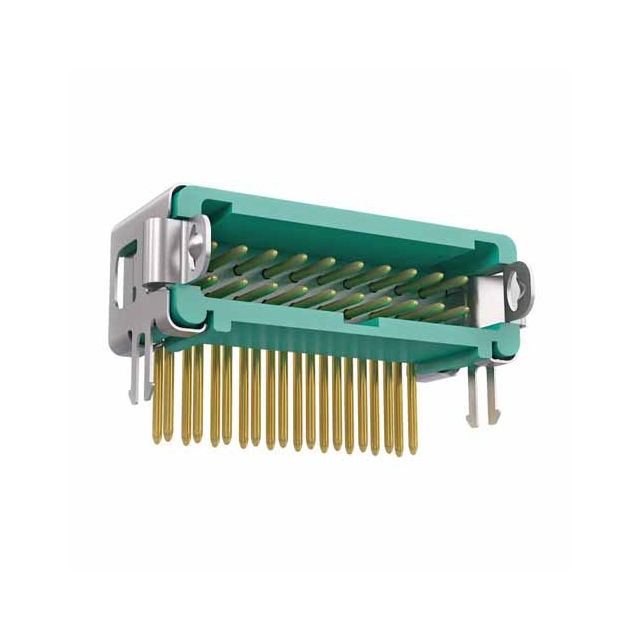

G125-MH12005L1R

Name: G125-MH12005L1R
Brand: Harwin Inc.
SKU: 1337626
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	G125-MH12005L1R
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HDR R/A 20POS / Connector Header Through Hole, Right Angle 20 position 0.049" (1.25mm)
Datasheet	G125-MH12005L1R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Gecko
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.218" (5.55mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA4T) , Nylon 4T, Glass Filled, Halogen Free
Features	Board Lock
Temperature Range - Operating	-65°C ~ 150°C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	2A
Voltage Rating	600VAC/DC
Contact Finish Thickness - Post	8.00µin (0.203µm)
Base Product Number	G125-MH1
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337626-G125-MH12005L1R
Ultra Librarian 3D Model	Ultra Librarian G125-MH12005L1R CAD Model

Alternative Products

Description

The G125-MH12005L1R is a 20 position male pin header connector from Harwin Inc.

Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Series: Gecko
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Contact Finish Thickness - Post: 8.00µin (0.203µm)
Shrouding: Shrouded - 4 Wall
Mounting: Through Hole, Right Angle
Spacing: 0.049" (1.25mm)
Contact Length - Post: 0.130" (3.30mm)
Packaging: Tape & Reel
Standard Package: 250
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4040
