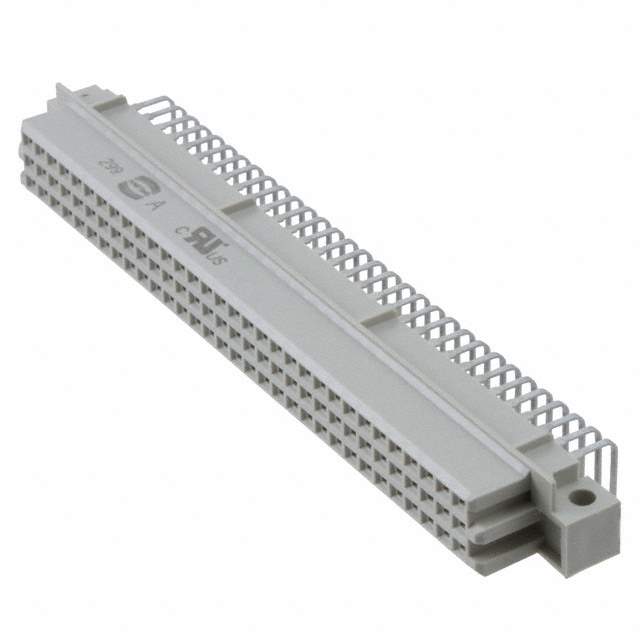

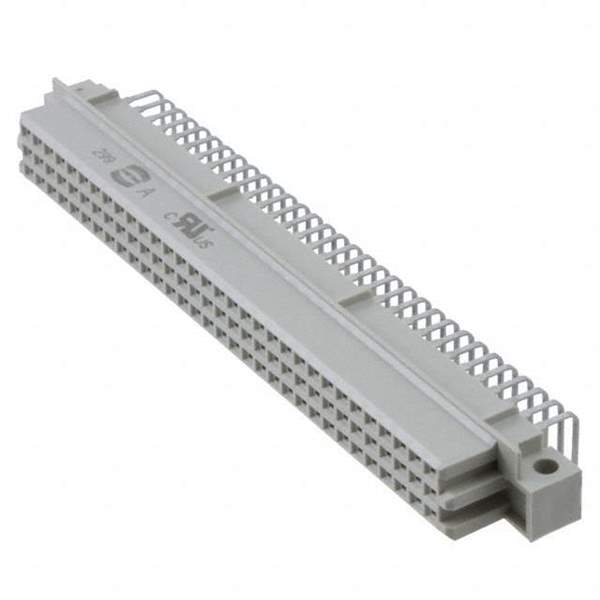

09732646801 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer HARTING
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 9732646801,1195-2891
Standard Package 20
Win Source Part Number 1333146-09732646801
Ultra Librarian 3D Model Ultra Librarian 09732646801 CAD Model

Description

The HARTING 1333146-09732646801 is a bulk-packaged electronic component with 96 positions and a pitch of 0.100" (2.54mm).

  • Connector Type: Receptacle Female Socket
  • Positions Loaded: 64
  • Rows: 3
  • Termination: Solder
  • Material Insulation: Not specified
  • Flammability Rating: Not specified
  • Standard Package: 20 connectors
  • Mounting: Through Hole and Right Angle
  • Style: R
  • Level, Class: 2
  • ECCN: EAR99
  • Application: Backplane connectors
