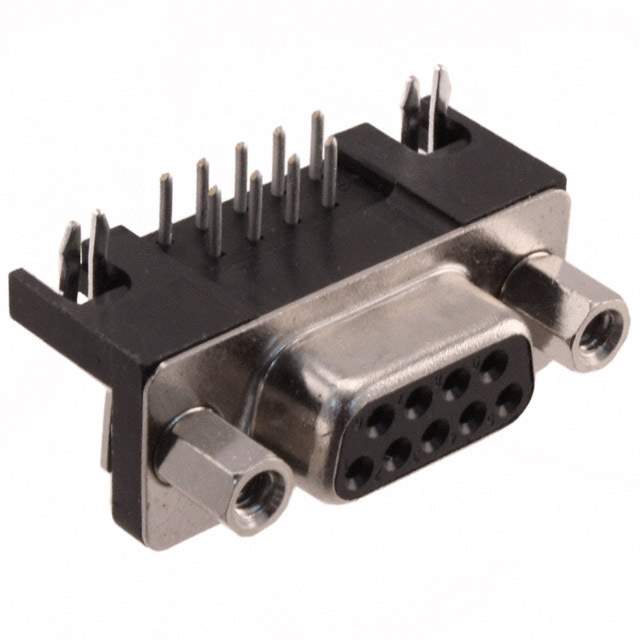

Same model may have multiple batches, images only for reference.

09681537613

Name: 09681537613
Brand: HARTING
SKU: 1333193
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	09681537613
Manufacturer	HARTING
Catalog	D-Sub, D-Shaped Connectors - Assemblies
Description	CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer	HARTING
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Mounting	Through Hole, Right Angle
Shell Size, Connector Layout	1 (DE, E)
Contact Type	Signal
Flange Feature	Mating Side, Female Screwlock (4-40)
Termination	Solder
Shell Material, Finish	Steel
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	6.5A
Backset Spacing	0.318" (8.08mm)
Features	Board Lock
Contact Form	Stamped
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Copper Alloy
Temperature Range - Operating	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	9681537613,1195-2800
Standard Package	50
Win Source Part Number	1333193-09681537613
Ultra Librarian 3D Model	Ultra Librarian 09681537613 CAD Model

Alternative Products

Description

The 1333193-09681537613 is a high-quality D-sub connector assembly manufactured by Harting.

Number of Positions: 9
Feature: Board Lock
Connector Type: Receptacle with Female Sockets
Contact Type: Signal
Number of Rows: Two
Termination: Soldering
Contact Form: Stamped
Contact Material: Copper Alloy
Connector Style: D-Sub
Material Flammability Rating: UL94 V-0
Shell Material and Finish: Steel
Dielectric Material: Polybutylene Terephthalate (PBT), Polyester, and Glass Filled
Shell Size and Connector Layout: 1 (DE, E)
Temperature Range - Operating: -55°C ~ 125°C
Backset Spacing: 0.318" (8.08mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
Current Rating (Amps): 6.5A
REACH: Unaffected
RoHS3 Compliant: Yes
