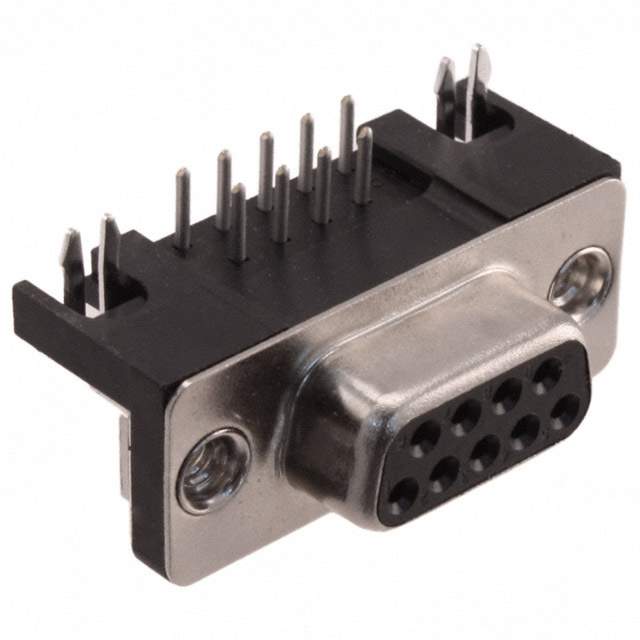

Same model may have multiple batches, images only for reference.

09681535612

Name: 09681535612
Brand: HARTING
SKU: 1333235
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	09681535612
Manufacturer	HARTING
Catalog	D-Sub, D-Shaped Connectors - Assemblies
Description	CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer	HARTING
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Mounting	Through Hole, Right Angle
Shell Size, Connector Layout	1 (DE, E)
Contact Type	Signal
Flange Feature	Housing/Shell (4-40)
Termination	Solder
Shell Material, Finish	Steel
Contact Finish	Gold or Gold-Palladium
Contact Finish Thickness	30.0µin (0.76µm)
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	6.5A
Backset Spacing	0.318" (8.08mm)
Features	Board Lock
Contact Form	Stamped
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Copper Alloy
Temperature Range - Operating	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	9681535612,1195-2797
Standard Package	50
Win Source Part Number	1333235-09681535612
Ultra Librarian 3D Model	Ultra Librarian 09681535612 CAD Model

Alternative Products

Description

The HARTING 1333235-09681535612 is a bulk-packaged, right-angle through-hole-mountable, 9-position, female socket connector with two rows.

Positions: 9
Connector Type: Female Socket
Rows: 2
Mounting: Right-Angle Through-Hole
Packaging: Bulk
Features: Board Lock
Contact Form: Stamped
Current Rating: 6.5A
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Dielectric Material: Polybutylene Terephthalate (PBT), Polyester, Glass-Filled
Shell Size: 1 (DE, E)
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
