Part No 09670094704
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies

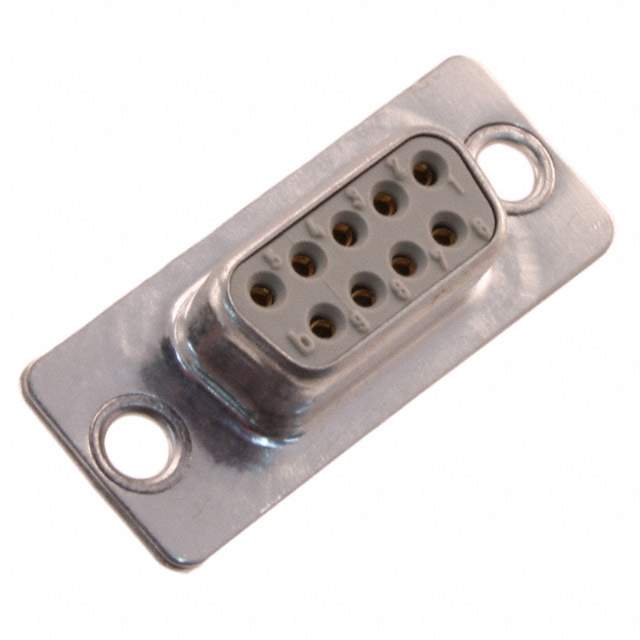

Description CONN D-SUB RCPT 9POS SLDR CUP / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
09670094704 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer HARTING
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 20 AWG
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 85°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 1195-2644,9670094704
Standard Package 100
Win Source Part Number 1333254-09670094704
Ultra Librarian 3D Model Ultra Librarian 09670094704 CAD Model

Description

The HARTING D-Sub connectors are designed to provide reliable and high-performance connections.

  • Manufacturer: HARTING
  • Positions: 9
  • Configuration: Receptacle, female sockets
  • Termination: Solder cup
  • Contact Form: Machined
  • Contact Material: Copper alloy
  • Shell Material Finish: Steel shell material finish
  • Temperature Range: -40°C to 85°C
  • Current Rating: 7.5 amps
  • ROHS3 Compliant: Yes
