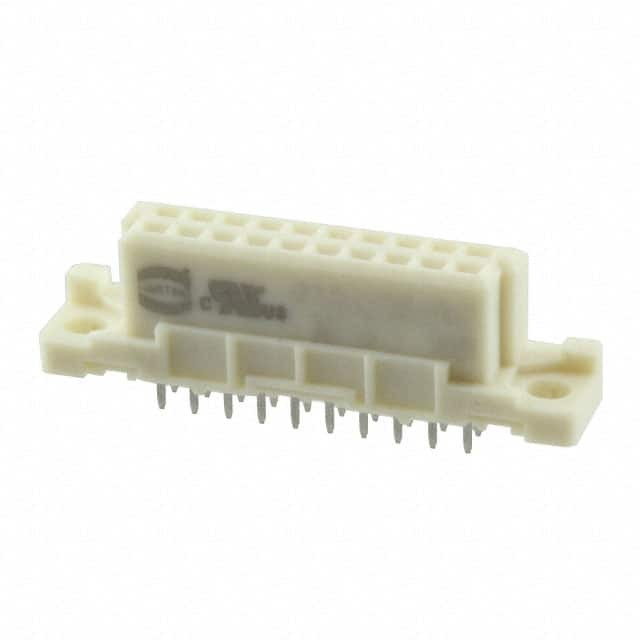

Part No 09242206841
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 20POS PCB GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 20
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style 3B
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold or Gold-Palladium
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854597-09242206841
Ultra Librarian 3D Model Ultra Librarian 09242206841 CAD Model

Description

The 854597-09242206841 is a DIN 41612 Backplane Connector from HARTING.

  • Type: Receptacle
  • Contact Gender: Female sockets
  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Mounting: Through-hole
  • Temperature Range: -55°C to 125°C
  • Material: Polycyclohexylenedimethylene terephthalate (PCT), glass-filled
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold or gold-palladium
  • Packaging: Bulk
  • Package Quantity: 20 pieces
  • Series: DIN 41612
