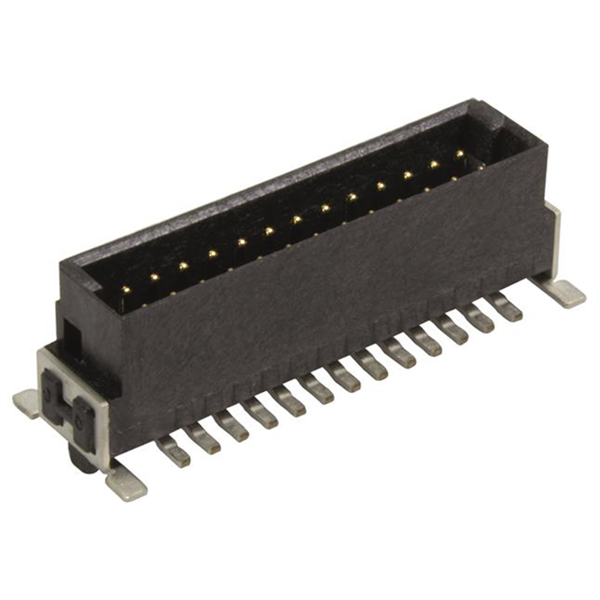

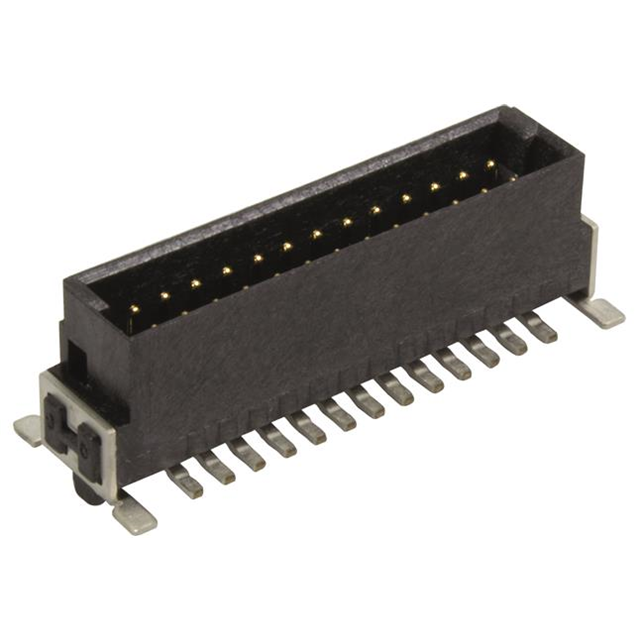

Same model may have multiple batches, images only for reference.

15110602601000

Get a Quote

Part No	15110602601000
Manufacturer	HARTING
Catalog	Rectangular Connectors
Description	HAR-FLEX STRAIGHT MALE 1.75MM, 6 / Connector Header Surface Mount 60 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	HARTING
Series	har-flex®
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	60
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	280 pcs
Win Source Part Number	1380530-15110602601000
Ultra Librarian 3D Model	Ultra Librarian 15110602601000 CAD Model

Description

The 1380530-15110602601000 is a male pin header connector from the har-flex series by HARTING.

Series: har-flex
Positions: 60
Design: Shrouded 4-wall
Fastening Type: Push-Pull
Mounting: Surface Mount
Moisture Sensitivity Level: Not Applicable
ECCN: EAR99
HTSUS: 8536.69.4040
