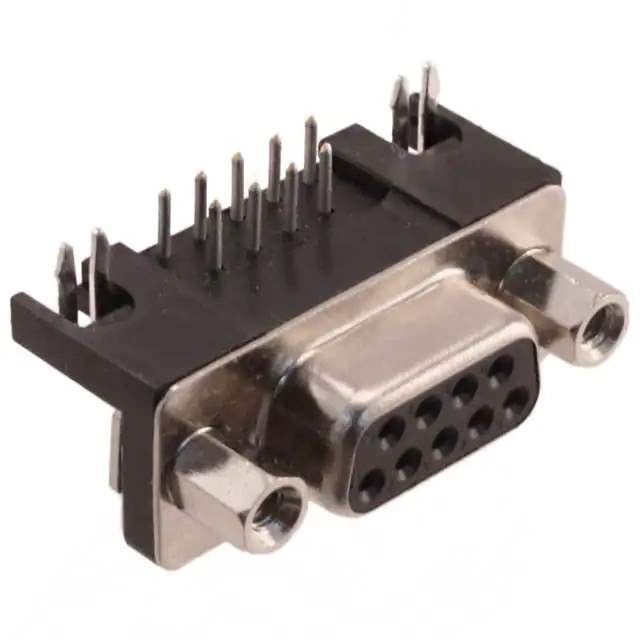

09681535613 Real Image
Same model may have multiple batches, images only for reference.

09681535613

Part No 09681535613
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6.5A
Backset Spacing 0.318" (8.08mm)
Features Board Lock
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 908781-09681535613
Ultra Librarian 3D Model Ultra Librarian 09681535613 CAD Model

Description

The 908781-09681535613 is a D-Sub connector assembly designed for signal applications from HARTING.

  • Positions: 9
  • Contact Gender: female sockets
  • Rows: 2
  • Termination: soldering
  • Contact Finish: gold or gold-palladium
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: bulk
  • Contact Form: stamped
  • Material: copper alloy
  • Shell Material: steel
  • Shell Size: 1 (DE, E)
  • Mounting: through hole at a right angle
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 6.5A
  • Standards: industry standards
  • Product Status: active
  • Manufacturer: HARTING
