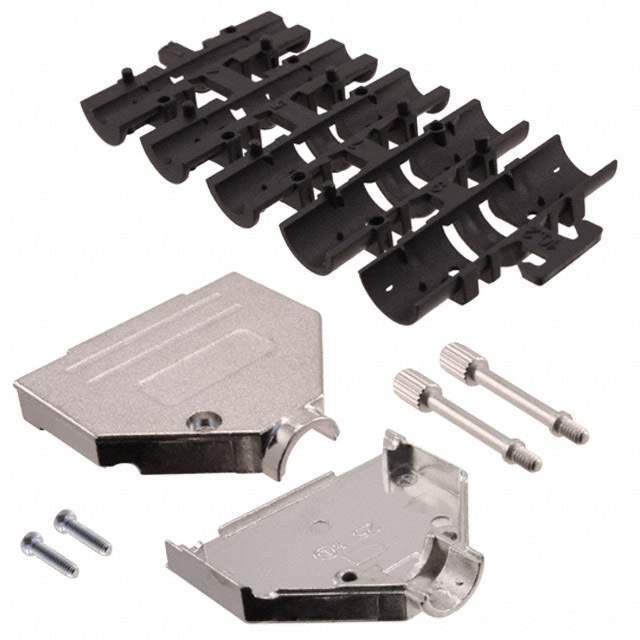

Same model may have multiple batches, images only for reference.
09670250343 HARTING
Same model may have multiple batches, images only for reference.

09670250343

Part No 09670250343
Manufacturer HARTING
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 25POS 180DEG
Datasheet
09670250343 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203593-09670250343
Manufacturer HARTING
Category Connectors, Interconnects- D-Sub, D-Shaped Connectors -D-Sub, D-Shaped Connector Backshells, Hoods
Package Bag
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 25
Cable Type Round
Material Metal
Hardware Assembly Hardware, Grommets
Features Mating Screws 4-40
Ultra Librarian 3D Model Ultra Librarian 09670250343 CAD Model

Description

25 Position Two Piece Backshell Connector 180°
