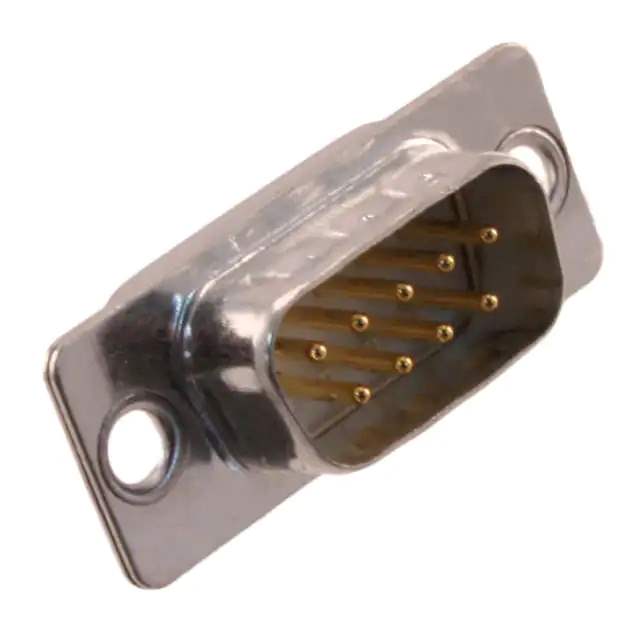

09670095604 Real Image
Same model may have multiple batches, images only for reference.

09670095604

Part No 09670095604
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS SLDR CUP / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
09670095604 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Grounding Indents
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 20 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 858710-09670095604
Ultra Librarian 3D Model Ultra Librarian 09670095604 CAD Model

Description

The 858710-09670095604 is a D-Sub connector assembly from HARTING.

  • Positions: 9
  • Type: Plug
  • Gender: Male
  • Termination: Solder cup
  • Rows: 2
  • Mounting: Free hanging (in-line)
  • Dielectric Material: Polybutylene terephthalate (PBT) and polyester, glass-filled
  • Contact Material: Copper alloy
  • Current Rating: 7.5A
  • Ingress Protection: IP67
  • Shielded: Yes
  • Grounding: Indents
  • Package: Tray
  • Pieces per Package: 100
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
