09300240301 HARTING
Same model may have multiple batches, images only for reference.

09300240301

Part No 09300240301
Manufacturer HARTING
Catalog Heavy Duty Connectors

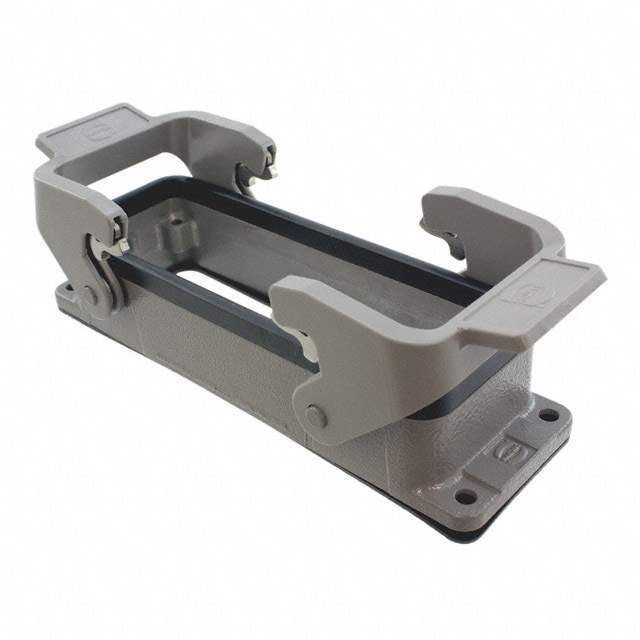

Description CONN BASE BOTTOM ENTRY SZ24B
Datasheet
09300240301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206665-09300240301
Manufacturer HARTING
Category Connectors, Interconnects -Heavy Duty Connectors -Heavy Duty Connector Housings, Hoods, Bases
Series Han® B
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Lock Location Locking Clip (2) on Base Bottom
Size / Dimension 5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Ultra Librarian 3D Model Ultra Librarian 09300240301 CAD Model

Description

Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant
