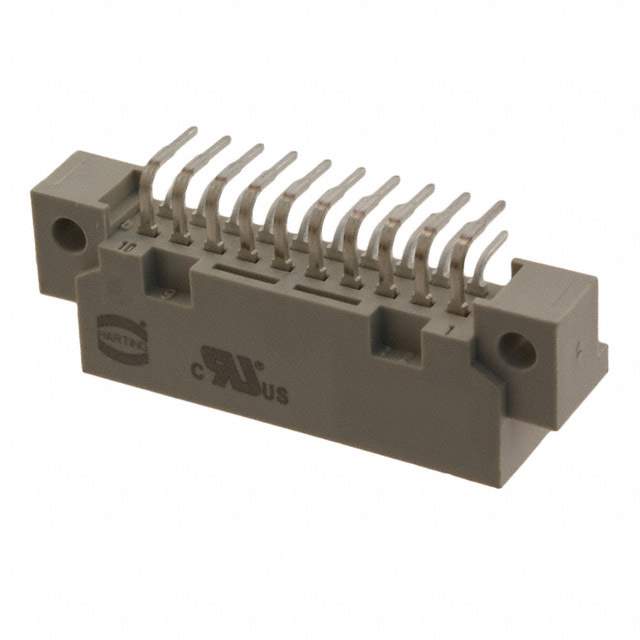

09241206921 Real Image
Same model may have multiple batches, images only for reference.

09241206921

Part No 09241206921
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN HDR 20POS PCB RA GOLD / 20 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Header, Male Pins
Number of Positions 20
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style 3B
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858606-09241206921
Ultra Librarian 3D Model Ultra Librarian 09241206921 CAD Model

Description

The 858606-09241206921 is a DIN 41612 backplane connector with 20 positions.

  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Type: Header with Male Pins
  • Positions Loaded: All
  • Rows: 2
  • Termination: Soldering
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Orientation: Right-Angle
  • Temperature Range: Wide Temperature Range
