09185266324

Get a Quote

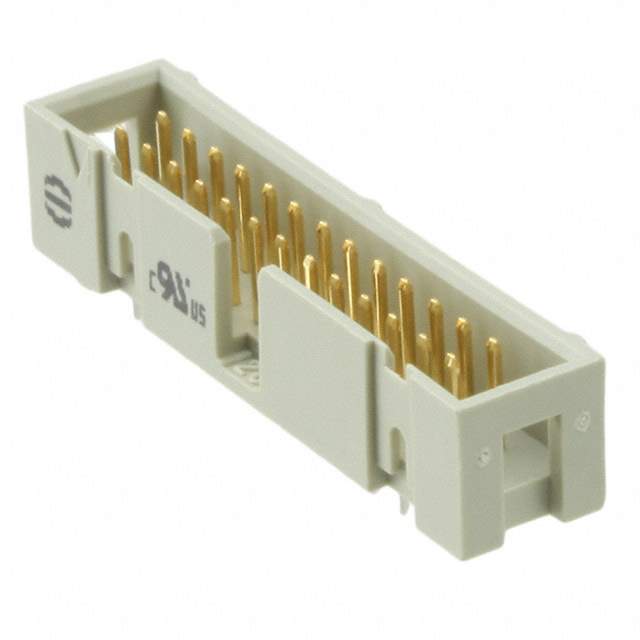

Part No	09185266324
Manufacturer	HARTING
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 26POS 2.54MM / Connector Header Through Hole 26 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	HARTING
Series	SEK
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	-
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	100 pcs
Win Source Part Number	1381241-09185266324
Ultra Librarian 3D Model	Ultra Librarian 09185266324 CAD Model

Description

The SEK series male pin header is a high-quality connector designed for use in electronic devices.

Positions: 26
Number of Rows: 2
Keying Slot: Yes
Contact Material: Copper Alloy
Termination: Solder
Mounting Type: Through-Hole
Fastening Type: Latch Holder
Insulation Material: Polybutylene Terephthalate (PBT) with Glass-Filled Properties
Temperature Range: -55°C to 125°C
