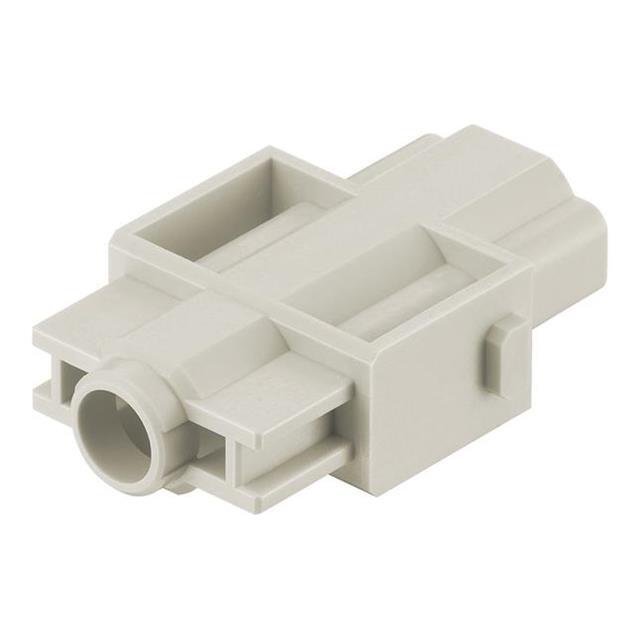

09140013131 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09140013131

Part No 09140013131
Manufacturer HARTING
Catalog Connectors, Interconnects
Description MODULE FEMALE 1POS CRIMP/SCREW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsHeavy Duty ConnectorsHeavy Duty Connector Inserts, Modules
Manufacturer HARTING
Series Han-Modular?
Packaging Bulk
Part Status Active
Connector Type Module without Contacts
Gender Female
Number of Positions 1
Termination Style Crimp; Screw
Voltage Rating 830V
Current Rating (Amps) 100A
Operating Temperature -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Material Flammability Rating UL94 V-0
Base Product Number 09140013
Ultra Librarian 3D Model Ultra Librarian 09140013131 CAD Model
