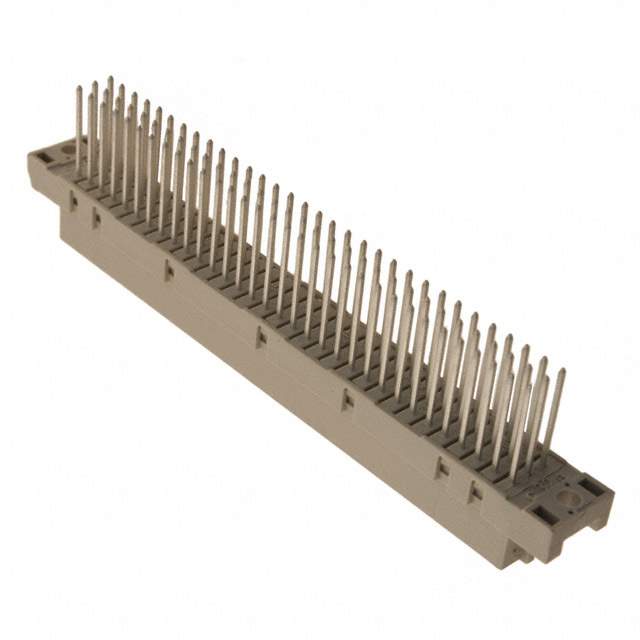

09032966421 Real Image1 09032966421 Real Image2
Same model may have multiple batches, images only for reference.
09032966421 Real Image1 09032966421 Real Image2
09032966421 Real Image1 09032966421 Real Image2
Same model may have multiple batches, images only for reference.

09032966421

Part No 09032966421
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 96POS PCB GOLD / 96 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Datasheet
09032966421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness -
Temperature Range - Operating -
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20 pcs
Win Source Part Number 1381233-09032966421
Ultra Librarian 3D Model Ultra Librarian 09032966421 CAD Model

Description

The DIN 41612 is a backplane connector in the C style. It features 96 positions and has a pitch of 0.100 inches (2.54mm). The connector has female sockets and is solder terminated. The contact finish is gold. The connector is made of thermoplastic, glass-filled insulation material and has a flammability rating of UL94 V-0. It is suitable for through-hole mounting and has a standard package of 20 pieces.

  • Series: DIN 41612 C Style
  • Positions: 96
  • Pitch: 0.100 inches (2.54mm)
  • Connector Type: Female Sockets
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through-Hole
  • Standard Package: 20 Pieces
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: HARTING
