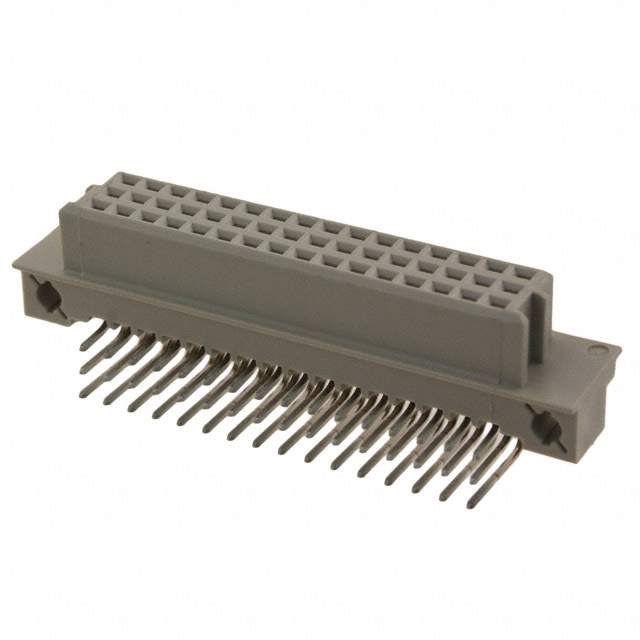

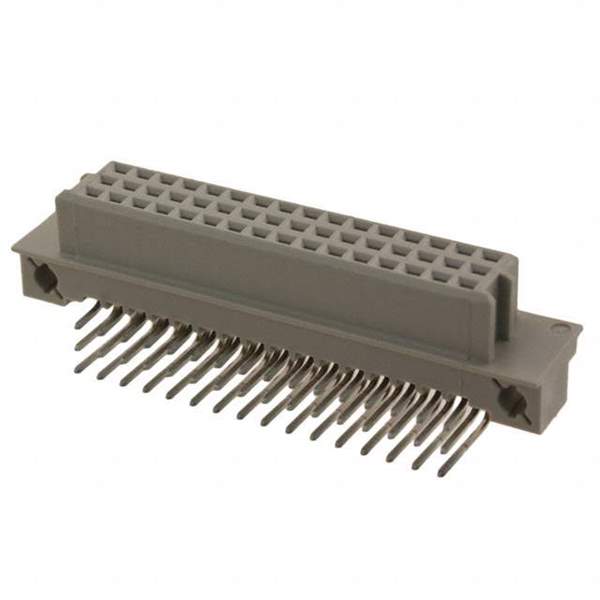

Part No 09282486801
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB RA GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer HARTING
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 2R
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 9282486801,1195-1890
Standard Package 20
Win Source Part Number 1333133-09282486801
Ultra Librarian 3D Model Ultra Librarian 09282486801 CAD Model

Description

The HARTING 1333133-09282486801 is a 48-position DIN 41612 backplane connector with a pitch of 0.100" (2.54mm).

  • Connector Type: Receptacle, Female Sockets
  • Positions Loaded: All
  • Rows: Three
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting Style: Through-Hole, Right-Angle
  • Style: 2R style and class 2 level
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 20
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
