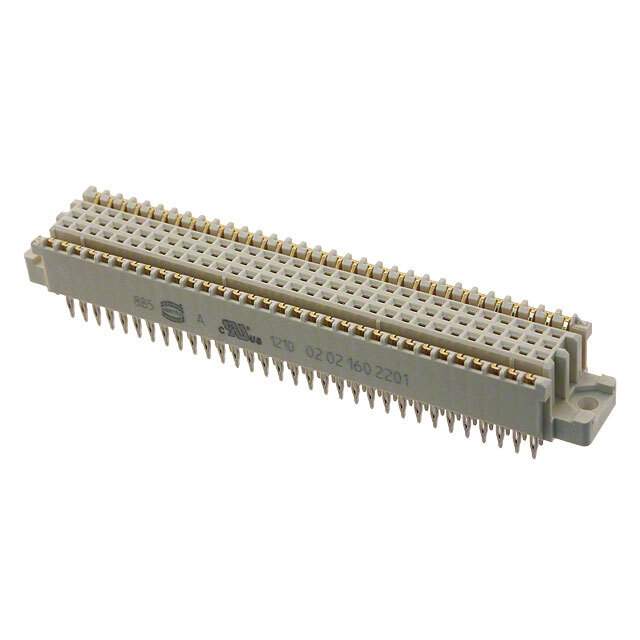

Same model may have multiple batches, images only for reference.

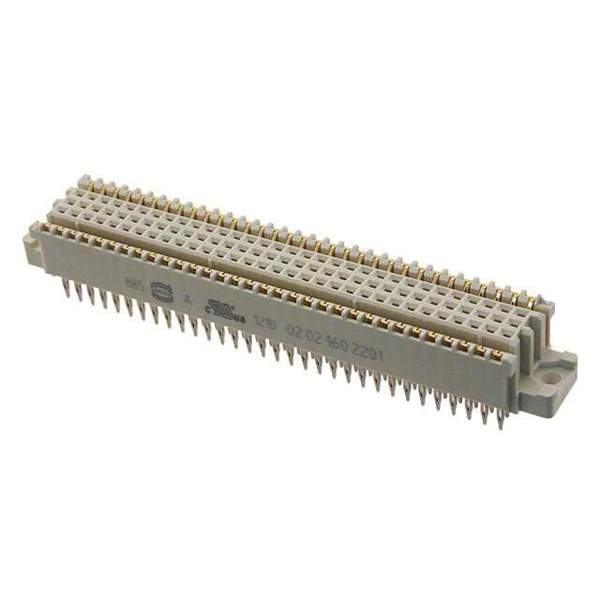

02021602201 Real Image
Same model may have multiple batches, images only for reference.

02021602201

Part No 02021602201
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 160POS PCB / 160 (96 + 64 Ground) Position Din Connector Receptacle, Female Sockets Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 160 (96 + 64 Ground)
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 5
Style -
Level, Class 2
Mounting Type Through Hole
Termination Press-Fit
Features -
Contact Finish -
Contact Finish Thickness -
Temperature Range - Operating -40°C ~ 105°C
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Material - Insulation -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20 pcs
Win Source Part Number 1380360-02021602201
Ultra Librarian 3D Model Ultra Librarian 02021602201 CAD Model

Description

The 1197497 is a DIN 41612 backplane connector manufactured by HARTING. It features 160 positions, with 96 positions for signals and 64 positions for ground connections.

  • Positions: 160 (96 Signal, 64 Ground)
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle, Female Sockets
  • Termination Method: Press-Fit
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 105°C
  • Flammability Rating: UL94 V-0
  • REACH: Unaffected
  • Packaging: Bulk
