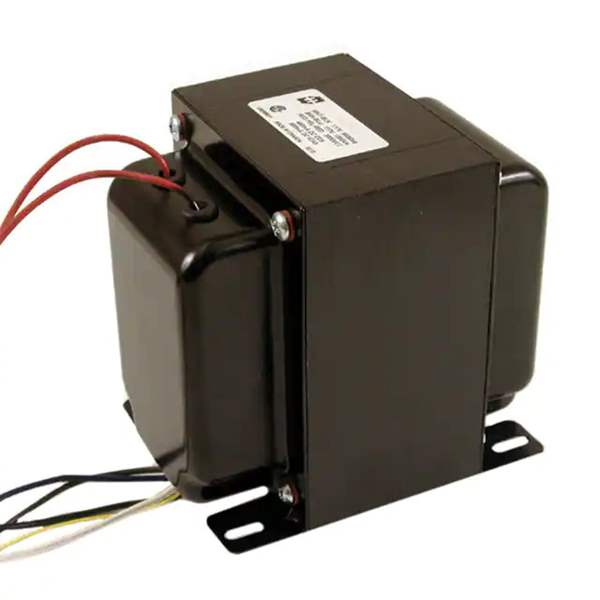

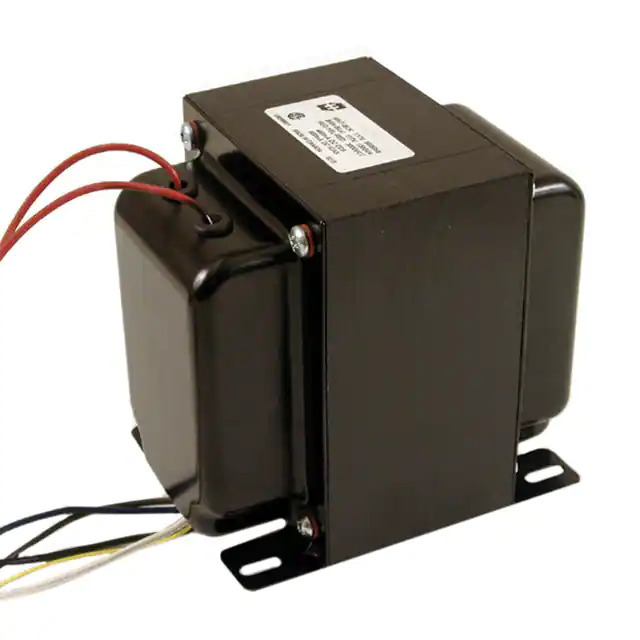

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 700
Package Bulk
Product Status Active
Type Laminated Core
Voltage - Primary 117V, 234V
Voltage - Secondary (Full Load) 2000V
Current - Output (Max) 175mA
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 210VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 133.35mm L x 95.25mm W
Height - Seated (Max) 114.30mm
Voltage - Isolation -
Weight 12 lbs (5.4 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1377603-728A
Ultra Librarian 3D Model Ultra Librarian 728A CAD Model

Description

The 728A is a power transformer manufactured by Hammond Manufacturing.

  • Series: 700
  • Core Design: Laminated
  • Maximum Output Power: 210VA
  • Current Output: 175mA
  • Size: 133.35mm L x 95.25mm W
  • Seated Height: 114.30mm
  • Mounting Type: Chassis Mount
  • Package: Bulk
  • Primary Winding: Single
  • Secondary Winding: Single
  • Voltage Isolation: 2000V
  • Primary Voltage: 117V, 234V
  • Termination Style: Wire Leads
