Same model may have multiple batches, images only for reference.

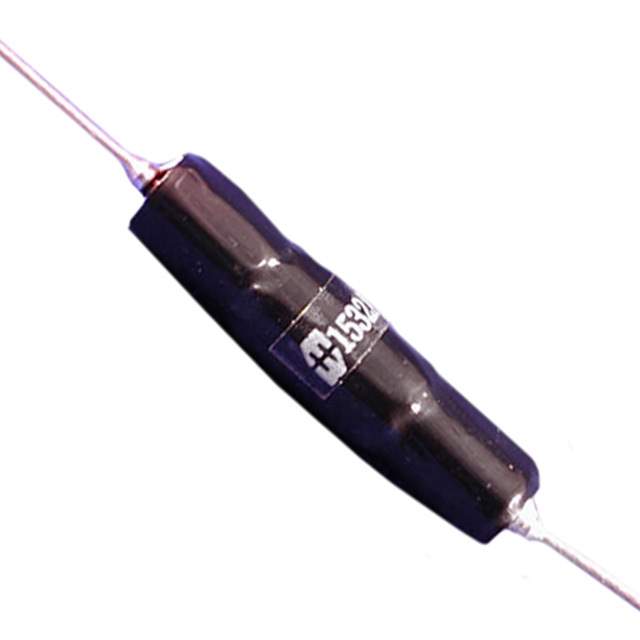

1532C Real Image
Same model may have multiple batches, images only for reference.

1532C

Part No 1532C
Manufacturer Hammond Manufacturing
Catalog Fixed Inductors
Description FIXED IND 24UH 800MA 340 MOHM TH / 24 µH Unshielded Wirewound Inductor 800 mA 340mOhm Max Axial
Datasheet
1532C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Hammond Manufacturing
Series 1532
Package Bulk
Type Wirewound
Inductance 24 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Shielding Unshielded
DC Resistance (DCR) 340mOhm Max
Q @ Freq 65 @ 2.5MHz
Frequency - Self Resonant 25MHz
Inductance Frequency - Test 2.5 MHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.290" Dia x 0.875" L (7.37mm x 22.22mm)
Base Product Number 1532
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1532C-ND,HM3318
Standard Package 1
Win Source Part Number 1034823-1532C
Ultra Librarian 3D Model Ultra Librarian 1532C CAD Model

Description

The 1532 series wirewound fixed inductor is an unshielded inductor with an inductance of 24 uH and a tolerance of ±10%.

  • Inductance: 24 uH
  • Tolerance: ±10%
  • Q @ Freq: 65 @ 2.5MHz
  • Frequency Self-Resonant: 25MHz
  • DC Resistance (DCR): 340mOhm Max
  • Current Rating: 800 mA
  • Mounting Type: Through-Hole
  • Package/Case: Axial
  • Dimension: 0.290" Dia x 0.875" L (7.37mm x 22.22mm)
