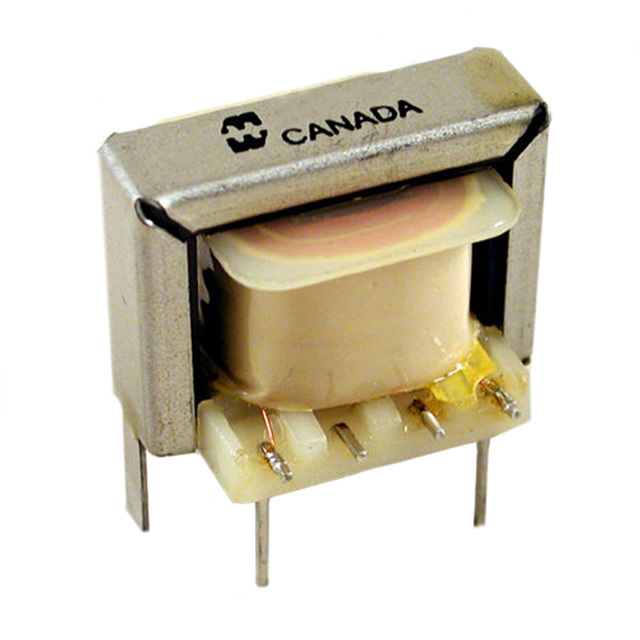

Part No 145R
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description AUDIO XFMR 20K / 2KCT CHAS MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Impedance - Primary (Ohms) 20k
Impedance - Secondary (Ohms) 2kCT
DC Resistance (DCR) - Primary 1.18kOhm
DC Resistance (DCR) - Secondary 89Ohm
Transformer Type Economical Open Type
Frequency Range 150Hz ~ 15kHz
Frequency Response ±1dB
Power Level 135mW
Mounting Type Chassis Mount
Size / Dimension 1.630" L x 0.880" W (41.40mm x 22.35mm)
Height - Seated (Max) 0.810" (20.57mm)
Termination Style Wire Leads
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511062-145R
Ultra Librarian 3D Model Ultra Librarian 145R CAD Model
