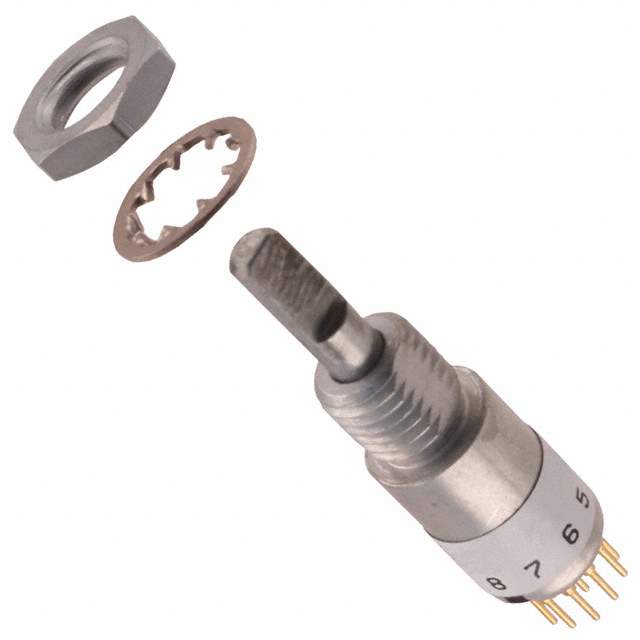

75BP36-01-1-04N Real Image
Same model may have multiple batches, images only for reference.

75BP36-01-1-04N

Part No 75BP36-01-1-04N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 4POS 200MA 115V
Datasheet
75BP36-01-1-04N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Status Active
Number of Positions 4
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP4T
Contact Timing Non-Shorting (BBM)
Current Rating 200mA (AC/DC)
Voltage Rating - AC 115V
Voltage Rating - DC 30V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 36°
Contact Finish Gold
Mounting Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 12.70mm
Win Source Part Number 118942-75BP36-01-1-04N
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 75BP36-01-1-04N CAD Model
