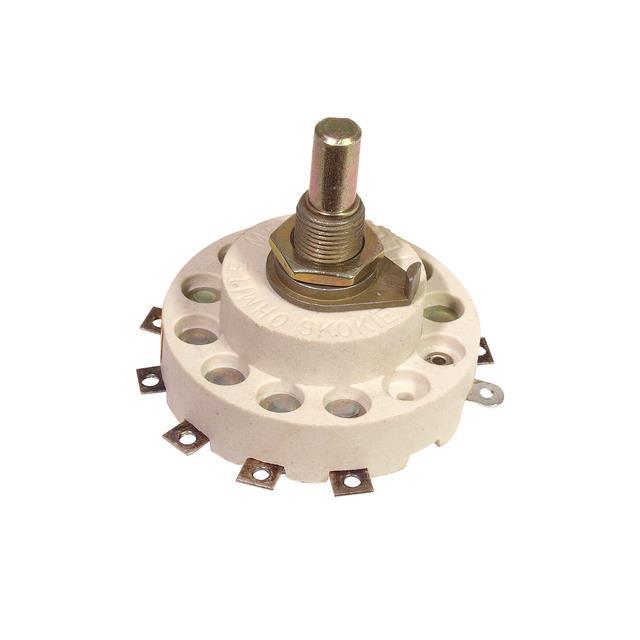

24B36-01-1-08N Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

24B36-01-1-08N

Part No 24B36-01-1-08N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 8POS 1A 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 8
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP8T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 7.92mm
Angle of Throw 36°
Contact Material Phosphor Bronze
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 14.68mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559186-24B36-01-1-08N
Ultra Librarian 3D Model Ultra Librarian 24B36-01-1-08N CAD Model
