Same model may have multiple batches, images only for reference.

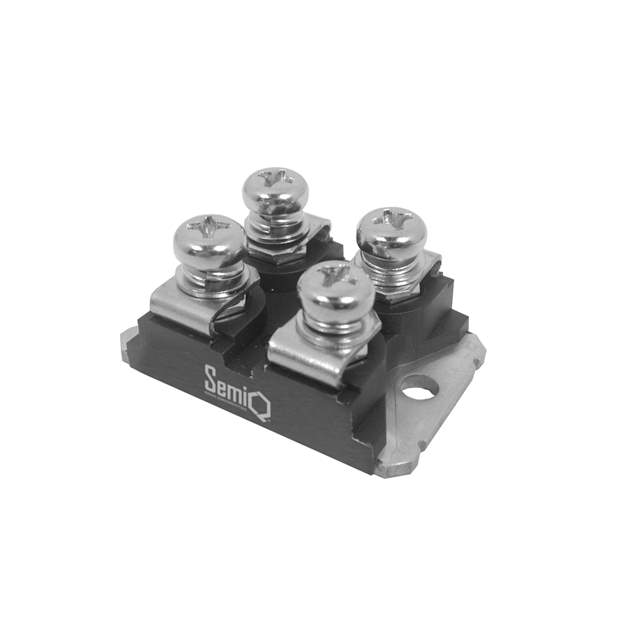

GHXS030A060S-D1E Real Image
Same model may have multiple batches, images only for reference.

GHXS030A060S-D1E

Part No GHXS030A060S-D1E
Manufacturer Global Power Technologies Group
Catalog Bridge Rectifiers
Description MOD SBD BRIDGE 600V 30A SOT227
Datasheet
GHXS030A060S-D1E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Global Power Technologies Group
Packaging Bulk
Diode Type Single Phase
Technology Silicon Carbide Schottky
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.7V @ 30A
Current - Reverse Leakage @ Vr 100μA @ 600V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227
Win Source Part Number 763092-GHXS030A060S-D1E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GHXS030A060S-D1E CAD Model

Description

The Global Power Technologies Group GHXS030A060S-D1E is a silicon carbide schottky type diode with a current rating of 30A and a voltage rating of 600V.

  • Current Reverse Leakage: 100μA @ 600V
  • Mounting Type: Chassis Mount
  • Package: SOT-227-4, miniBLOC
  • ECCN Compliance: Yes
  • Voltage Peak Reverse: 600V
  • Voltage Forward (Vf): 1.7V @ 30A
  • Applications: Discrete Semiconductor Products
